Motorola xtl 5000 uhf astro digital apco 25 t band

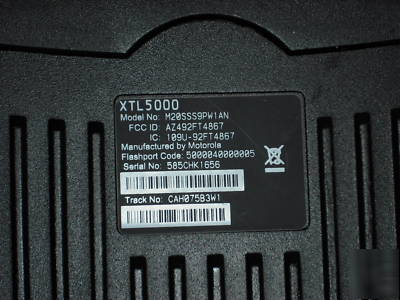

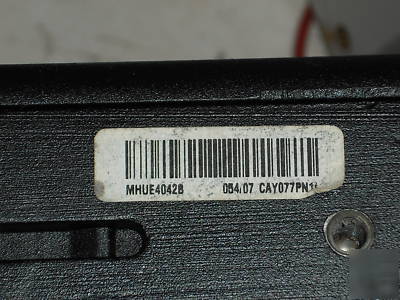

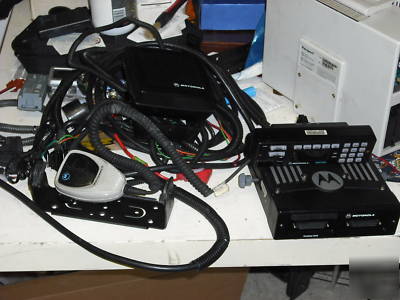

here we have a complete Motorola XTL 5000 UHF Apco 25 Digital Public Safety radio. This radio comes complete with harness, speaker and W7 head it is tested and works fine. This radio has had very little use, as it was used in an EMS system that closed . As you can see from the serial numbers what this radio is capable of. Note the picture of the serial number is one of the radios I have the numbers are sequential

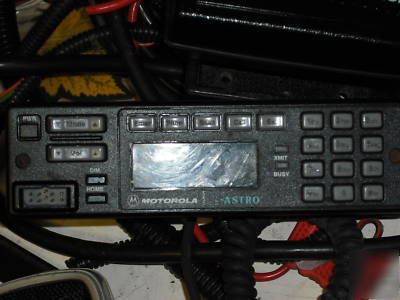

Here we have a Motorola XTL 5000 Digital Apco 25 W 7 M20SSS9PW1AN
The Motorola XTL 5000 Digital Mobile Radio is equipped to meet the most demanding needs of your organization. Whether you are enroute or on site, across the street or across the state, this mobile radio assures crisp, continuous and high quality communications.
The Motorola XTL 5000 Digital Mobile Radio with its new architecture and design, is equipped to meet the most demanding needs of your organization. This robust Project 25 compliant mobile assures crisp, continuous and high quality communication. The XTL 5000 is for radio users who require high performance, quality and reliability in their daily communications.
Highlights of the Motorola XTL 5000 Digital Mobile Radio:
* Power: , 40 110 watts/UHF1 10 40 watts, UHF2 10 45 watts
* Keypad: W3, W7, W9 Yes, W4, W5 No
* Dimensions H x W x L - 2.0 x 7.1 x 9.1
* Frequency: UHF2 (450 520MHz)
Motorola XTL 5000 Digital Mobile Radio Features:
The XTL 5000 mobile radio is capable of the following: ASTRO 25 Digital Trunking, ASTRO Analog and Digital Trunking, and Analog and Digital Conventional.
Enhanced Frequency Spectrum Utilization
The XTL 5000 mobile radio is designed to offer multiple frequency band solutions for perfect system optimization in congested urban areas or wider country regions. Motorola currently offers 10-50 watt, UHF Range 2 10 45 watt, expanding the frequency span (450 520MHz).
The XTL 5000 mobile radio is capable of further enhancements such as Integrated Voice and Data and Status Message Service.
The XTL 5000 mobile is available in five different control head configurations including the W3 Handheld Control Head, W4, W5, W7 and W9 ASTRO Spectra control heads. Existing ASTRO Spectra Control heads can be reused with the new mobile transceiver.
Along with the standard mobile configurations, the XTL 5000 can also be ordered as a Motorcycle mobile radio with 10-15 watt variable power. Specific options provide water resistant microphone, speakers and control heads for Motorcycle applications along with an enclosure for mounting the mobile transceiver.
The security features of the XTL 5000 mobile include Type III and Type IV encryption including DES, DES-XL, DES-OFB, DVI-XL, DVP-XL and AES algorithms. Also supports Advanced Digital Privacy (ADP).
Allows you to add capabilities and features to your radios as your communication needs evolve.
Supports 512 channels with all Control Heads
Supports most ASTRO Spectra Accessories
Digital or Analog, Conventional or Trunking, Encryption, APCO Project 25 Capable, 12.5/25 kHz channel spacing,
The Motorola XTL 5000 Digital Mobile Radio is supplied with
