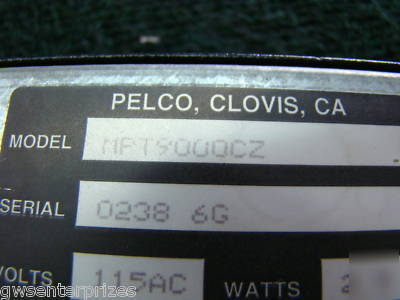

Pelco MPT9000CZ coaxitron desktop controller transmitr

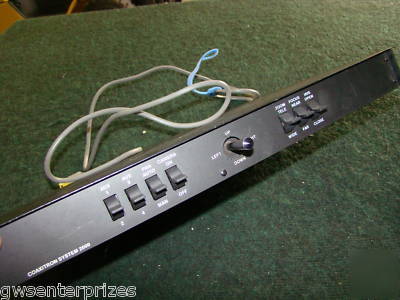

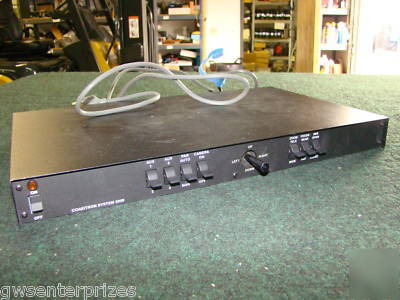

Pelco MPT9000CZ Coaxitron Desktop Transmitter And Controller, below is some online for ur reference only, you get only what is pictured above, nothing else
The MPT9000CZ is a offers a versatile transmitter/controller that can be used in a variety of applications for controlling pan/tilts and cameras. The desktop or rack mount units have an eight-position joystick for operating pan/tilts, and switches for control of camera zoom, focus, and iris functions. There also are switches for auxiliary functions to control such things as lights or doors. The transmitter/controller is compatible with random interlace and 2:1 interlace cameras. The MPT9000CZ is capable of auto/random scan operation when used with an appropriate receiver, such as the IRD2024 or ERD2200. The MPT9000CZ is uses Pelco s Coaxitron system to send control signals to pan/tilt receivers. Coaxitron allows control signals to be sent over the video coaxial cable, eliminating the need for separate control wiring between a transmitter and receiver. The control pulses are superimposed upon the video signal during the vertical blanking interval where they are not noticeable on the monitor.
* For use with 24 VAC or 120 VAC (Non-Preset) Coaxitron Receivers
* Single Coax Cable Controls All Functions
* Up to 16 Remote Control Functions
* Single PC Board Integrates All Operational Functions
* Auto/Random Scan Capability
* Desktop or Rack Mount Models Available
* Input Voltage: 120 VAC, 50/60 Hz
* Power Consumption: Transmitter/Control 2.5 VA
* Receiver: 5 VA (120 VAC or 24 VAC)
* Pan/Tilt: Supply 140 VA (120 VAC) maximum
* Lens Supply: 0-4 VA maximum
* Camera Supply: 15 VA (typical)
* Control Method: 15-pulse train (pulse width modulated)superimposed upon the video signal during the vertical interval by the control transmitter.Pulse train occupies one TV line period
* Pulse Amplitude: Approximately 1 Vp-p added to video signal;333 kHz nominal

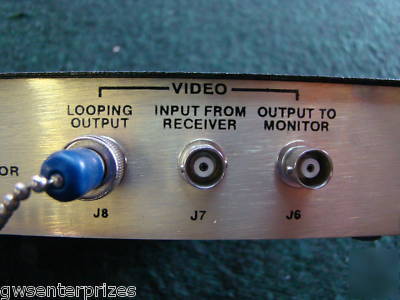

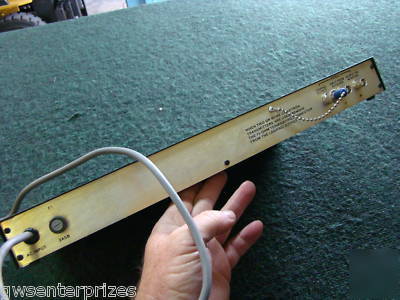

* Connectors: Control 3 BNC connectors
* Fuse Protection: 3 AG type
* Power Cord: 3-wire grounded, 18 AWG (control and receiver)
* Power On/Off: Rocker switch

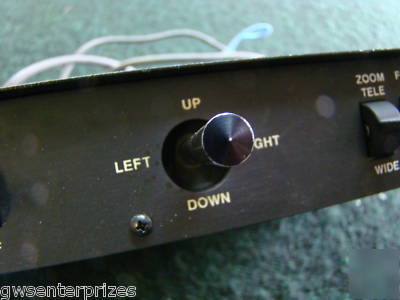

* Pan/Tilt: 8-position joystick

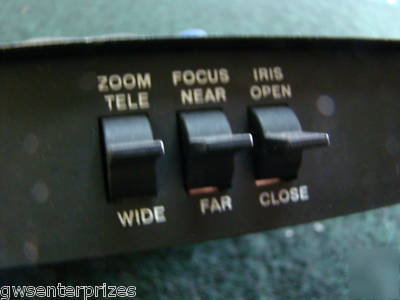

* Zoom: Paddle switch, TELE/WIDE
* Focus: Paddle switch, NEAR/FAR
* Iris: Paddle switch, OPEN/CLOSE

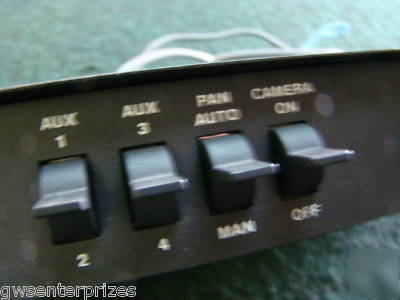

* Pan Auto/Man: Paddle switch (latching function in receiver)
* Camera On/Off: Paddle switch (latching function in receiver)
* Aux 1, 2: Paddle switch (receiver provides open collector output that can be used as one latching function or two momentary functions)
* Aux 3, 4: Paddle switch, two momentary functions (logic levels in receiver)
* Pilot Lamp: Long life neon
* Environment: Indoor; 32 to 120 F (0 to 49 C)
* Dimensions: 1.75" H x 17.60" W x 10.50" L(4.44 cm x 44.70 cm x 26.67 cm)
* Unit Weight: 7.23 lb (3.28 kg)
