Pico usb tc-08 8-channel thermocouple data logger PP222

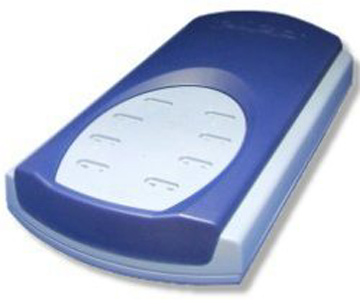

Pico Technology TC-08 Thermocouple Data logger
Saelig is an Authorized Pico Distributor
Item: TC-08 USB Data Logger [PP222]
Description: The TC-08 thermocouple data logger is designed to measure a wide range of temperatures using any thermocouple that has a miniature size thermocouple connector at up to 10 temperature measurements per second.
Featuring built-in cold junction compensation (CJC), the TC-08 has an effective temperature range of -270 to 1820 C (The actual temperature range depends on the thermocouple being used.)
The TC-08 thermocouple data logger offers industry-leading performance and a cost-effective solution to your temperature measuring needs.
* 8 channel thermocouple data logger
* Measures from -270 to 1820 C
* High resolution and accuracy
* Multiple units can be run on a single PC
The TC-08 thermocouple data logger is designed to measure a wide range of temperatures using any thermocouple that has a miniature size thermocouple connector. Additionally, the TC-08 can also measure other sensors using a 70 mV range.
The TC-08 connects to the USB port of a Windows based PC and enables the host PC to automatically detect the TC-08 avoiding the need for any complex setup procedures. The USB connection also allows the TC-08 to be powered directly by the USB bus eliminating the need for an external power supply and making the TC-08 ideal for measuring temperatures both in the lab and in the field.
The TC-08's USB connectivity allows up to 10 TC-08 USB data loggers to be used simultaneously on one PC making the TC-08 ideal for use as a large multi-channel temperature acquisition system with a cost per channel significantly lower than other systems of this size.
Fast and accurate temperature data acquisition
With the TC-08 thermocouple data logger your measurements can be made both fast and accurately.
The low conversion time of the TC-08 means up to 10 temperature measurements can be taken every second. Whilst the high (20 bit) resolution ensures that the TC-08 can detect minute changes in temperature.
All you need in one easy-to-use unit
Temperature data acquisition with the TC-08 is very easy simply plug the TC-08 into a USB port on your computer, connect your thermocouples, and you are ready to measure temperatures.
The easy-to-use PicoLog data acquisition software is supplied with the TC-08 allowing you to start measuring and recording temperatures with the minimum amount of effort. The intuitive user interface of PicoLog makes it easy for you to set how frequently you want to take a measurement, and the number of measurements you want to take.
100 ms (thermocouple and cold junction compensation)
Sum of 0.2 % of reading and 0.5 C
Sum of 0.2 % of reading and 10 V
PicoLog data acquisition software
Driver and examples (C, Delphi and Visual Basic, Labview, Agilent VEE6.1 and Excel)
Software is supplied on CD and is compatible with Windows 98SE/ME/2000/XP
