Pos numeric keypad card reader mini keyboard magnetic

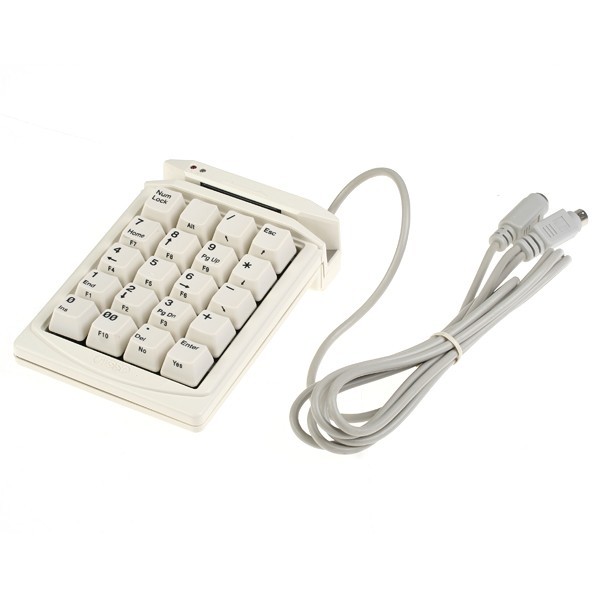

POS Numeric Keypad Card Reader Mini Keyboard Magnetic
* Built in magstripe card reader
* Ergonomic design with 20 key layout
The numeric keypad with magstripe card reader is brand new and boxed and comes with user manual and keyboard interface cable
* Capacity: 1KB for key program
* Contact resistance: 1 Ohm max
* Insulation resistance: 500M Ohm min
* Dielectric withstanding voltage: 100VAC 50/60Hz for 1 minute
* Operating travel: 1.5 0.5mm
* Operating speed: 0.1mm - 1m/s
* Operating frequency: less than 120 operations/minute
* TTL: F2F (2 frequency coherent phase)
* Swipe speed: 5 - 6 inch/sec
* Card standards: Track 1 - IATA standard, Track 2 - ABA standard, Track 3 - THRIF standard, JIS-2, JIS x 6300 standard
* Card density: Track 1 - 79 characters (7 bit code), Track 2 - 40 characters (5 bit code), Track 3 - 107 characters (5 bit code), JIS-2 - 79 characters (7 bit code)
* Dimensions: 135 x 97 x 40mm
* Storage temperature: -20 C to +60 C
* Operating humidity: 20% to 90%
