Sunnen mbb-1660 precision honing machine w/ tooling

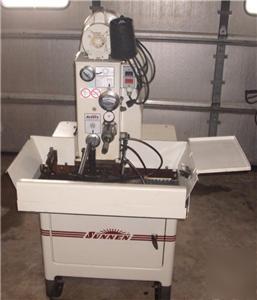

Sunnen MBB-1660 Precision Honing Machine w/ Tooling
Sunnen MBB-1660 Precision Honing Machine - Used
Included is a large assortment of tooling for the machine. (See photos)
This machine is set up for single phase @ 115 Volts 60 Hz 7.2 Amps
This unit was removed from a local company and is in great working condition. It also comes with the Owner's Operating and Maintenance Manual.
We will also consider seperate offers for the Honing Machine on its own and for just the tooling.
Honing Machine - Model MBB-1660
Manual Stroking: 1,5 to 165 mm (.060 - 6.500 in.)
Power Stroking: 1,5 to 95 mm (.060 - 3.750 in.) w/optional KKN-100
200, 250, 320, 400, 500, 640, 800, 1000, 1270,
Centrifugal pump driven off spindle motor.
Sunnen Industrial Honing Fluids
1524 D x 813 W x 1600 H mm (60 x 32 x 63 in.)
287 kg (630 lbs)2): 306 kg (675 lbs)
739 kg/sq meter (151 lbs/sq ft)
220/380/440 V, 50 Hz, 3 Ph; 220, 50, 1
230/460 V, 60 Hz, 3 Ph; 115/230, 60, 1
Pearl Gray / Pewter Gray / Burgundy Trim
Load (max. noise) condition in a typical factory environment.
Diameter range, length range, and workpiece weight are contingent on workpiece and application.
KKN-100 Square Honing Fixture (see Sunnen Bore Sizing and Finishing Catalog, X-SP-5500).
GENERAL INFORMATION & SPECIFICATIONS
