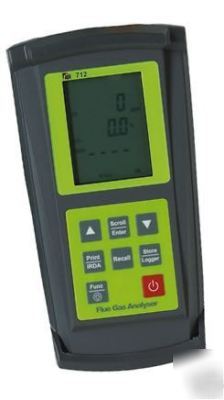

Tpi 712 TPI712 combustion analyzer
TPI 712 Combustion Analyzer with Built-in Differential Themometer, Differential Manometer, Combustable Gas Leak Detector, Data Logging,
Accurately test flue gases in furnaces and domestic boilers to determine operation efficiency. Time/date documentation for future reference.
* Measures CO, O2, pressure,and temperature
* Calculates CO2and gross ornet efficiency
* Works on High Efficiencyfurnace
* Selectable fuels: natural gas, light oil, heavy oil, LPG, Bituminous Coal, Anthracite Coal, Coke, Butane, Wood, Bagasse
* Pump driven for fast response
* Dual input differential manometer with 3 selectable units of measure: kPa,mBar, inH2O, .001 inH20resolution
* Tightness test: check forpressure leaks in valves, fittings, and switches with anelapsed time reference
* Flue probe with built-in thermocouple
* IR printer port - use optionalA740 Infrared Printer.
Carbon Monoxide (CO) Measurement
Accuracy +/-5ppm or 5% of reading whichever is greater
Range -40 to 1472 F, or -40 to 800 C
Accuracy (K-type) 0.3%, 2 F or 1 C
Selectable Ranges mBar,kPa, and inH2O
Ranges -150 mBar to +150 mBar -15 kPa to +15 kPa -60 inH2O to +60 in H20
Combustible Gas Level Indication
Natural Gas, LPG, Light Oil, Heavy Oil, Bituminous Coal, Anthracite Coal, Coke, Butane, Wood, Bagasse
Yes, via optional IR printer (A740)
Yes via optional IR adapter (A767)
