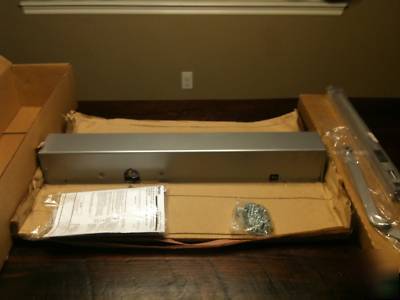

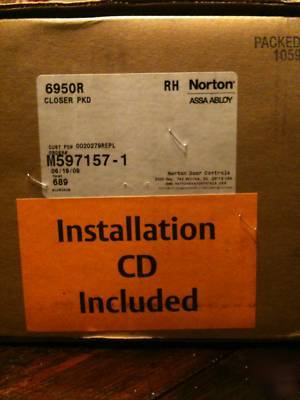

2 norton 6950 rh door openers
Spring buffered stop assembly in slide track
From 1/8" to 3" (3 to 76mm) frame reveal
An auxiliary stop is suggested where severe conditions exist
Drop plate for low ceiling applications
Push-side or pull-side applications
Open/close obstruction detection
Motor startup delay adjustment
Vestibule function delay adjustment (For sequencing two or more units)
Door hold open delay adjustment
Single Pole Double Throw (SPDT) relay output
SPDT relay output time adjustment
Blow open function for smoke ventilation
Selector mode switch (3 position)
- OFF Disables signal inputs except blow open. Unit still powered.
- ON Activates signal inputs for normal use
- HOLD OPEN Activates the unit to the hold open position indefinitely
Meets requirements for UL10C and UBC 7.2 for positive pressure
Americans with Disabilities Act (ADA)
UL Listing: Listed for use on fire and smoke barrier door assemblies when the 120VAC (60Hz) power input is supplied through the normally closed alarm contacts of a compatible U.L. listed alarm system or alarm panel
C-UL US listed for use on fire and smoke barrier doors
California State Fire Marshal: 3550-944:109
Power input 120 VAC, 60 Hz (+10%, -15%)
SPDT relay output for controlling electric strikes or electric locks not to exceed 1 amp @ 30 VDC
