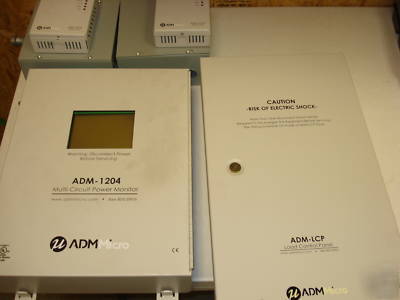

Adm micro system/energy managment system touch screen
Dimensions: approx. 22 in. (h)X 12 in. (w) X 4 in. (d)
Power: 120 VAC, 50/60 Hz, 0.4 A

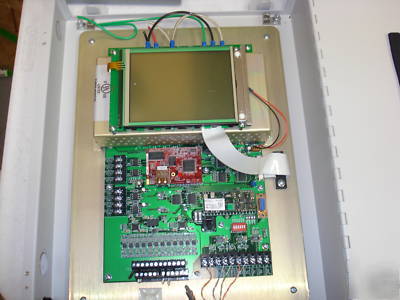

2. Interfaced Printed Circuit Board Assembly (PCBA), ADM-ROC7LC
* Output Relays (7) for Contactor control
Relay load capability (constrained by the ampacity of PCBA traces);
Can energize two 24 VAC, 6 VA Contactor coils
* RS485 Serial Interface, halp duplex, (2 wire) for communication with Energy Management System (EMS) Controller
* Photo sensor input (low voltage) - Measured values of light intensity are sent to the EMS Controller via the RS-485 Serial Interface
* Dry Contact Input - miscellaneous use - Contact state is sent EMS controller via the RS-485 Serial interface

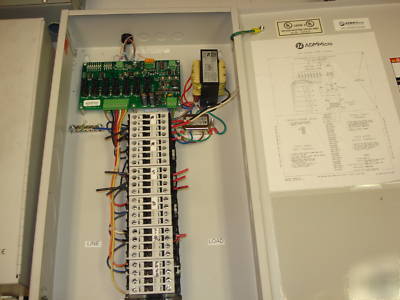

3. Control Transformer, 120/24 VAC, 75 VA
4. Filter for 24 VAC, PCBA power
5. Lighting Contactors (6), 4-pole, Normally closed (K1-K6)
30 A, 600 VAC for ballast loads
20 A, 277 VAC for tungsten loads
32 A, 600 VAC for motor loads ( 2 poles for phase, 3 poles for 3 phase)
24 VAC coil: 45 A VA pick-up 9 (inrush); 6 VA hold (steady state)
