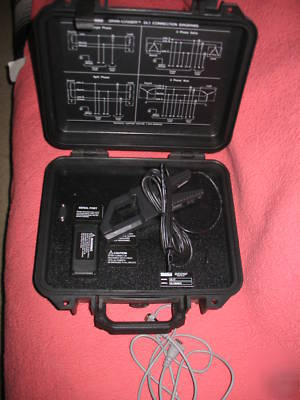

Dranetz DL1T
for use with Dranetz products only
Accuracy: 48 to 400 Hz: 1.5% reading 0.6A 400 to 3000 Hz: 3% reading 0.8A
Working voltage: 600 V max.
Frequency range: 48 to 3000 Hz
Maximum conductor size: 1.18" (30 mm)
Maximum bus bar size: 2.5 x 0.20" (63 x 5 mm)
Phase shift (45 to 1000 Hz): Less than 4
Operating temperature: 14 to 122 F (-10 to 50 C)
Storage temperature: -40 to 158 F (-40 to 70 C)
Dimensions: 2.60 x 7.68 x 1.34 (66 x 195 x 34 mm)
