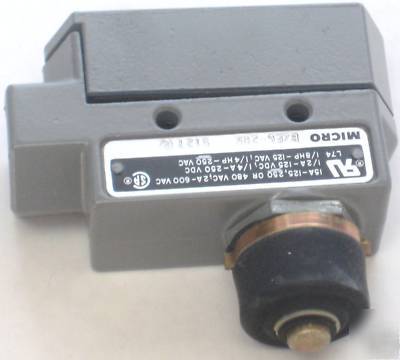

Honeywell microswitch 1-BZE6-2RN switch 1NC 1NO spdt
* Model / Part #: 1-BZE6-2RN (1BZE6-2RN) (1-BZE62RN) (1BZE62RN)
* Description: Enclosed Switches Series E6: Top Plunger Actuator; 1NC 1NO SPDT Snap Action; 0.5 in - 14NPT conduit
* Momentary or maintained contact
* High capacity (22 amp) available
* Temperature range -32 C to +71 C [ -25 F to +160 F]
* Zinc Die-Cast housing NEMA 1
* UL Recognized, file #E12252
* CSA Certified, file #LR41372
* Epoxy filled NEMA 1, 3, 4, 12, 13
* Pre-leaded or connector termination options
* Construction machinery and equipment
* Printing trades machinery
* Overhead cranes and hoists
E6 (side mount) and V6 (flange mount) switches are offered with or without actuator seal boots. Both have a combination insulator/seal cemented inside the bottom enclosure. Lead washers are used to seal the mounting holes on side mount switches. All side mount switches are installed with #6 screws, except the BZE6-2RN7 (#8 screws). Removal of the bottom enclosure exposes the terminals for easy wiring.
Honeywell's online product page is located at http://sccatalog.honeywell.com/printfriendly.asp?FAM=limitandenclosed&PN=BZE6-2RN
