(2) omal assured 1/2" vip actuator pneumatic valve

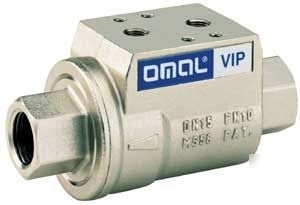

Picture is stock- blue label may be slightly different.
VIP Axial Flow Valve, Viton Seal, 1/2" threaded NPT
Used in man application when an actuated ball valve would normally be used.
The VIP is a two way nickel plated brass axial flow pneumatic valve that can be used in many applications where a pneumatically actuated ball valve would normally be used.
The valve is spring return and normally closed
The main benefits of using the VIP are:
Compact design saving space over an actuated ball valve.
Lighter weight than an actuated ball valve.
Simple and effective design, giving long life and reliability.
Full bore and improved internal dynamics, offering minimal pressure loss.
Cost savings over the equivalent sized actuated ball valve.
More info here: http://www.zoedale.co.uk/uploaded_photos/PR_VIP.pdf
See a Demo of how this valve works: http://assuredautomation.com/VA/demo.php
