Analogic 2020-25 polynomial waveform synthesizer

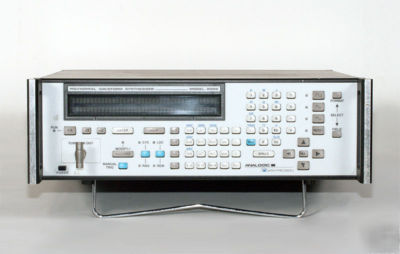

Analogic/Data Precision 2020-25 Polynomial Waveform Synthesizer
* Waveforms: Noise, Pulse, Sine, Square, Sawtooth, Triangle
* Maximum frequency, sine wave: 6.25 MHz
* Simultaneous maximum sampling rate/ch: 100 MSa/s
* Waveform length: 512,000 points
* Frequency accuracy: 0.05 %
* Minimum output voltage: 5 mV
* Maximum output voltage: 10 V
* Trigger modes: Freerun, Gate, Manual, Start, Stop
