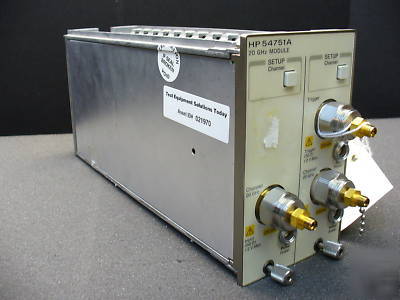

Agilent / hp 54751A 20GHZ vertical plug-in
The 54751A Vertical Plug-In is a 2-channel 20GHz vertical plug-in for the 54750A Digitizing Modular Oscilloscope Mainframe (not included). The two-wide configuration allows up to four channels in the 54750A. The bandwidth of each channel may be selected independently from the channel menu as either 20GHz or 12.4GHz. The bandwidth of the channel is altered by changing the bias on the sampling bridge. The low-noise characteristic of the plug-in gives an RMS noise level of <1.0 mV in the high-bandwidth mode and <0.5 mV in the low-bandwidth mode.
Bandwidth (-3dB): dc to 20 GHz
Transition Time(10% to 90%)(calculated from Tr = .35/BW): <=17.5 ps
Bandwidth (-3dB): dc to 12.4 GHz
Transition Time(10% to 90%)(calculated from Tr = .35/BW): <=28.2 ps
Dimensions: 433.6 mm (17.07 in) long; 238.2 mm (9.378 in) wide
