> Ge current limiting fuse type EJ1 ej-1 9F60BBD003 nos
Ge current limiting fuse type EJ1 ej-1 9F60BBD003 nos

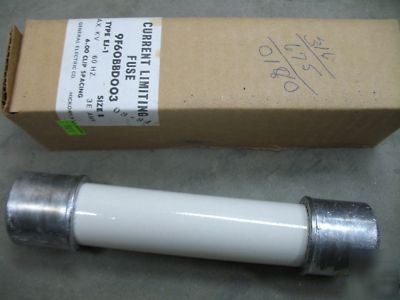

Current limiting Type EJ1, 5.5 KV, Size B, 3E Amp, 6.00" clip spacing. Transformer protection fuse.
4 5 / 8 " 2.75 kV - 6.0" Clip Centers - Mounted on Transformer B / 9F60BBB001 1E 60 kA 1 1 5 / 8 " / 9F60BBB002 2.75 2E 6 7 / 8 " 9F60BBB003 3E
Not Available for Outdoor Mounting
Catalog GEP 9013B - GE Medium Voltage Power Fuses Page 6
GE Potential Transformer Current-Limiting Power Fuses
GE Max. Amp No. of Cat. No. kV Rating Barrels 2.75 kV - 8.12" Clip Centers 9F60BDB001 1E 1 9F60BDB002 2.75 2E 9F60BDB003 3E 5.5 kV - 6.0" Clip Centers 9F60BBD905 0.5E 1 9F60BBD001 5.50 1E 9F60BBD002 2E 9F60BBD003 3E 9F60BBN905 0.5E 1 9F60BBN001 5.50 1E 9F60BBN002 2E 9F60BBN003 3E 5.5 kV - 8.12" Clip Centers 9F60BDD905 0.5E 1 9F60BDD001 5.50 1E 9F60BDD002 2E 9F60BDD003 3E 8.25 kV - 8.12" Clip Centers 9F60BDE905 0.5E 1 9F60BDE001 8.25 1E 9F60BDE002 2E 9F60BDE003 3E 15.5 kV - 11.5" Clip Centers 9F60BHH905 0.5E 1 9F60BHH001 15.50 1E 9F60BHH002 2E 9F60BHH003 3E Size / diam / length B / 1 5 / 8 " / 9 1 / 2 " B / 1 5 / 8 " / 7 3 / 8 " B / 1 5 / 8 " / 7 3 / 8 " TCC I / C Sym.
FUSE SUPPORTS & DISCONNECTING SWITCHES Indoor Fuse Mounting Outdoor Fuse Mounting Support Disc. Switch Support Disc. Switch
Type EK-1B (Tbl. A1) Not Available Not Available for Outdoor Mounting
Size B Fuses with 6" clip centers are normally mounted directly on potential Xfmrs. No supports or disc. switches are available for separate mounting. Size B Fuses with 6" clip centers are normally mounted directly on potential Xfmrs. No supports or disc. switches are available for separate mounting. Type EK-1B (Tbl. A1) Not Available
GE Current-Limiting Power Fuses
The GE Medium Voltage Current-Limiting Power Fuse offers dependable high-speed interruption of high-magnitude potentially dangerous short-circuit currents. GE Type EJ Power class Current-Limiting Fuses are designed to meet stringent Industrial and Electric Utility applications. Application & selection data on GE Fuses can be found in bulletins GET-3039G, 2664C, and 6779. Refer to last page of this catalog for information about other publications.
GE Max. Amp No. of Cat. No. kV Rating Barrels 2.75 kV - 7" Clip Centers 9F60CCB001 1E 9F60CCB002 2E 9F60CCB003 3E 9F60CCB005 5E 1 9F60CCB007 2.75 7E 9F60CCB010 10E 9F60CCB015 15E 9F60CCB020 20E 9F60CCB025 25E 9F60ECB030 30E 9F60ECB040 40E 1 9F60ECB050 2.75 50E 9F60ECB065 65E 9F60ECB080 80E 9F60ECB100 100E 9F60GCB125 125E 2 9F60GCB150 2.75 150E 9F60GCB200 200E 2.75 kV - 9" Clip Centers 9F60CEB001 1E 9F60CEB002 2E 9F60CEB003 3E 9F60CEB005 5E 1 9F60CEB007 2.75 7E 9F60CEB010 10E 9F60CEB015 15E 9F60CEB020 20E 9F60CEB025 25E Size / diam / length TCC I / C Sym.
