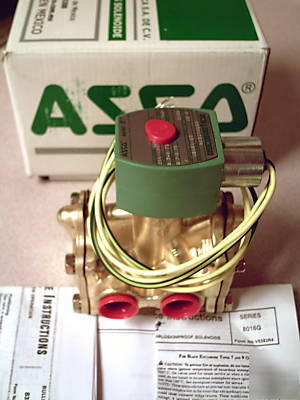

Asco solenoid valve 3-way hc 8316G66 8316G66-120/60
Solenoid Valve 3-Way NO 1/2", 120/60 12.7MM
ASCO Red Hat pilot operated 3-way normally open solenoid valves will provide control of air, inert gas, water, and other clean flowing media compatible with the materials of construction. These heavy-duty brass body diaphragm poppet valves have resilient seating for tight shutoff. This valve has three ports - one inlet, one outlet and one exhaust port. The inlet flow is connected to the outlet with the coil de-energized. The inlet flow is blocked and the outlet is connected to the exhaust port with the coil energized. 8316 series valves can be mounted in any position and can be used to pilot large process valve actuators. Type: 3-Way Normally Open (energize to close)
Pipe Size: 1/2" NPT, 5/8" Orifice, Cv 3.2
Construction: Brass Body, NBR (buna-n) seals, other materials include stainless steel 305, 430F, 302, 17-7PH, CA (Delrin) and a copper shading coil
Pressure (Min-Max): 10-150 PSI (air), 10-125 PSI (water)
Flow Rate (Min-Max): 10-96 GPM (water), 44-315 SCFM (air)
Coil Rating: 120/60 VAC, 6.1 watts, class F continuous duty service
Media Temperature: 180 F maximum
Ambient Temperature: 32-125 F nominal (minimum 0 F where freezing water is not a factor)
