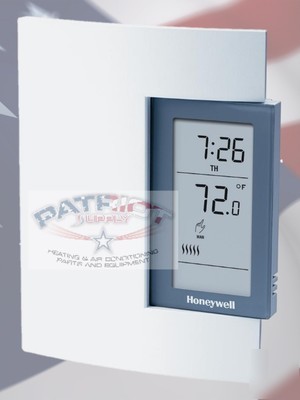

Honeywell programmable line volt thermostat TL8100A1008
Programmable Hydronic Line and Low Voltage Thermostat for circulators, zone valves, electric baseboards, central heating (gas, oil electric, hot water) and millivolt systems.
Application Hydronic and Electric Heating Systems
Terminal Designations R, W, (X, C, optional remote input)
Dimensions (in.) 4.9 in. high X 3.8 in. wide X 1 in. deep
Dimensions (mm) 127 mm high X 97 mm wide X 26 mm deep
Electrical Ratings Maximum load: 5 A (resistive) @ 24 V, 120 V, 240 V 2 A (inductive) @ 24 V, 120 V, 240 V
Electrical Connections 5.5 in. (140mm) tinned copper lead wires
Operating Temperature Range (F) 32 F to 122 F
Operating Temperature Range (C) 0 C to 50 C
Setting Temperature Range (F) 40 F to 85 F
Setting Temperature Range (C) 5 C to 30 C
Voltage 24 VDC, 120 Vac, 240 Vac
