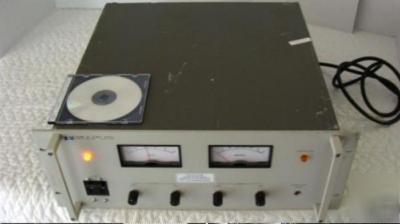

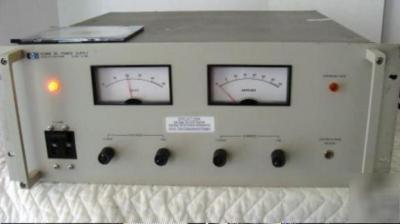

Hp - agilent 6268B 0-40V/0-30A dc power supply w/opt
The Output is regulated, very stable, and adjustable 0 to 40 Volts DC, 0 to 30 Amps. Constant voltage or constant current modes. Volt and Amp meters. Over volt shutdown with adjustable trip and indicator light. Both voltage and current controls have fine and coarse ranges. Remote voltage sensing ability. Remote voltage and current programming. Auto series or parallel and auto tracking modes with like models for increased voltage or current and control over several supplies. Output terminals may be left floating or one (positive or negative) output terminal may be grounded.
