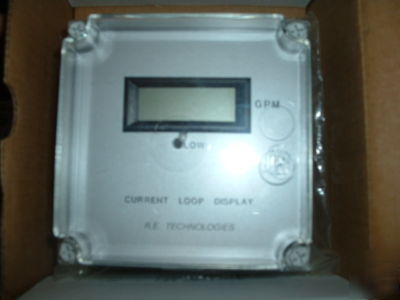

Kele flow rate display & xmitter uft-1AE2
The Model UFT-1 Universal Flow Transmitter is a solid-state, digital signal converter designed to operate with Data Industrial 200 Series flow sensors. Both analog (4-20 mA) and pulse outputs are available. The Model UFT-1 may be mounted in an optional NEMA 4X enclosure or with digital display of gpm or totalized flow (in a non-watertight enclosure).arrow Features
* Optional watertight (NEMA 4X) enclosure
* Optional displays for flow rate and totalization
* Excitation voltage for flow sensors
* LED indication of pulse activity
arrow Specifications Supply voltage:24 VDC @ 60 mA
Operating temp:32 to 140 F (0 to 60 C)
Operating humidity:5% to 95% noncondensing
Input:15-150 Hz full scale (dry or electronic contact)
Output:4-20 mA and solid-state switch
Max loop resistance:4-20 mA output, 750W @ 24 VDC
Output switch rating:40 VDC 200 mA
Step response:5 sec from 10-90%
