Mastech auto-range notebook digital multimeter w/ timer

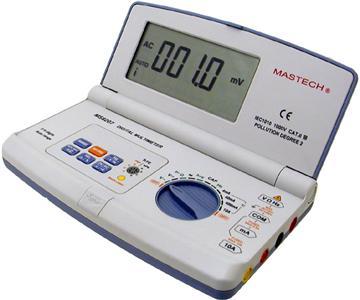

Mastech Auto/Manual Ranging DMM, MS8207
The Mastech MS8207 is a notebook-type auto-range digital multimeter with dual display, it has a built-in timer which shows when the maximum and minimum values are recorded, then it will automatically calculate the average value. It can be used to measure AC/DC voltage and current, resistance, capacitance & frequency.
* DCV: 400mV 0.5% 4/40/400V 0.3% 1000V 0.5%
* ACV: 400mV 0.5% 4/40/400V 0.8% 700V 1.2%
* DCA: 4m/40mA/400mA 1.0% 10A 2.0%
* ACA: 4m/40mA/400mA 10A 3.0%
* : 400/4k/40k/400K/4M 0.6% 40M 1.0%
* CAP: 40n/400n/4 /40 F 2.0%
* FREQUENCE 4000Hz/40K/400K/800K 1.0%
* Back-lit 3999-count LCD display with 40 analog bar graph
* Maximum/Minimum/Average recording with timer
* Auto power off when folded
* Carrying case with shoulder strap
