New powder coat batch oven inside 8FT x 8FT x 10FT deep

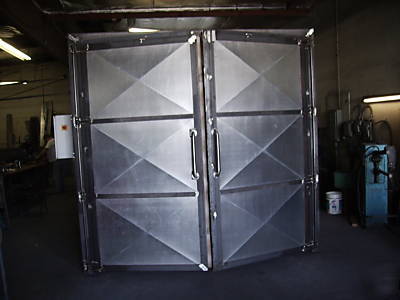

. DON'T LET THIS COMPETITIVE PRICE FOOL YOU, OUR OVENS ARE BUILT WITH A HEAVY DUTY STEEL STRUCTURE BASE AND DOOR FRAME ASSEMBLY THAT MAKES THEM ONE OF THE MOST DURABLE OVENS BUILT IN AMERICA TODAY. WE HAVE SIMILAR OVENS OF THIS DESIGN STILL OPERATING AFTER 30 YEARS IN SERVICE. SEE A PICTURE OF THE UNPAINTED DOORS TO SHOW THEIR DURABILITY. IF YOU ARE IN CALIFORNIA IN A LOCATION THAT REQUIRES LOW NOX EMISSIONS BURNER, CONTACT US FOR THE PRICE ADDITON.
FOR FACTORY ASSEMBLY OF THIS UNIT WITH FIELD MOUNT OF EXHAUSTER BY OTHERS, ADD $600.00 TO THE PURCHASE PRICE.

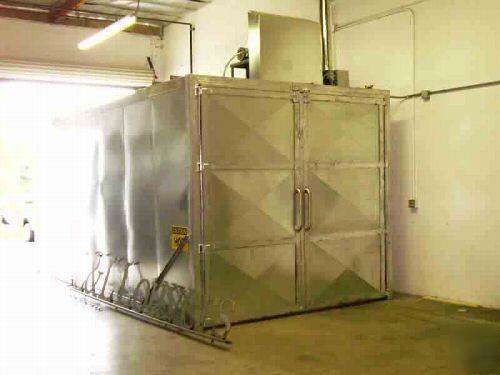

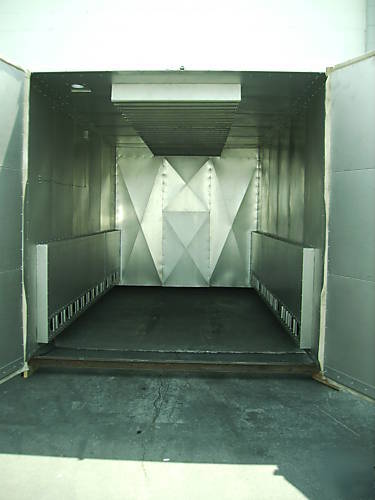

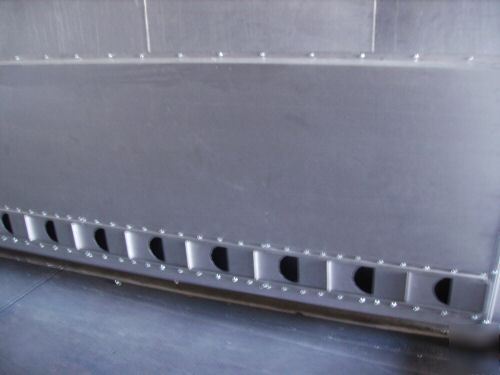

Brand new oven, inside working dimensions are 8ft wide x 8ft high x 10 ft deep working area. Construction is is galvanized steel exterior panels with aluminized interior for moisture resistance. The entire oven door frame asembly is of heavy duty 4" x 4" x 1/4" angle steel construction. This insures many years of operation at 500 F degree service without doors warping or sagging due to fatigue of metal at these temperatures. Don't be fooled by ovens which have 1/8 inch frames as they will not withstand the rigor of temperature and continual door opening and will in time warp due to hinge metal fatigue on this thin structure. Our oven double doors are heavy duty, yet can open or close with one hand. An explosion proof latch for safety is provided. The standard construction is rear mounted burner and blower assembly. Oven panels and inserts are spot welded for longevity. This insures no sagging due to heat or metal failure since no fasteners are used in their assembly.
The burner is state of the art design, hot forced air blower package with Honeywell control for flame and spark. The system is designed for an automatic purge with pilot safety prior to the main burner operation. An automatic lockout system is available shoulde pilot not light the burner timely. The entire burner is UL LISTED which most City Inspectors and Fire Department personnel recognize for easier approval. IF YOU ARE IN CALIFORNIA, AND REQUIRE A LOW NOX BURNER UNIT, CONTACT US FOR PRICING FOR THESE SPECIAL SPECIFICATIONS.
