Parabolic antenna feed support c-band 3.7 4.2 ghz dish

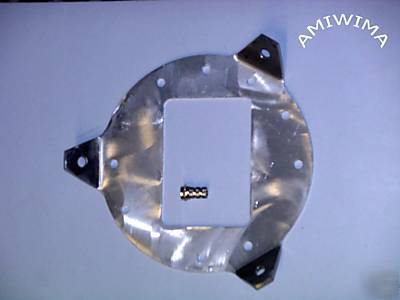

You will a get a new FEED SUPPORT (holder) for feedhorns , lnb s or polarizer designed for C-BAND parabolic antennas. The triangle can be used for different sizes of parabolic dishes and can be used for higher or lower frequency bands too. Please check the dimensions of your antenna first to see if you can use it in your specific application.
Flange size: 3.93 x 2.75 in or 10,0 x 7,0 cm (inner rectangular structure)
Triangle size: 7.17 x 7.17 x 7.17 in or 18,2 x 18,2 x 18,2 cm
Antenna rod wholes: 0.35 in or 8,5 mm
Angle for antenna rods: about 50 degrees
Plate wholes: 9 pcs @ 0.24 in or 6,5 mm
Alu thickness: 0.118 in or 3.00 mm
