Serial lcd #117-9600 - blue lcd (assembled)

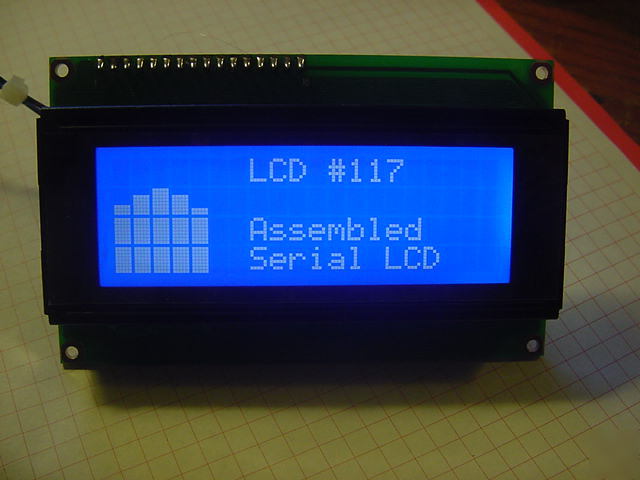

This is a combination of my popular LCD #117 Kit, a printed circuit board from Paul Badger , and a quality 4X20 LCD with blue backlight.
Note that this is a fully assembled unit just waiting to interface with your project.
* 4X20 character text LCD with blue backlight.
* Eight User Defined Characters (saved in EEPROM).
* Programmable Tab Size (saved in EEPROM).
* Programmable Cursor Style (saved in EEPROM).
* Rich Cursor Instruction Set including, clear LCD, clear current line, cursor to defined line, cursor to defined column, cursor up, down, back, foward, new line and "beep".
* 3 block wide and 4 block wide "big number" capability.
* Customized splash display screen.
* Variable intensity of LED backlight.
* Three addressable TTL level outputs (15 mA) - Available on solder pads near the processor.
* +5 VDC, GRD and SerIn plus a separate +5 VDC for powering the LCD backlight available on 4-terminal IDE locking connector. A cable about 12 inches long is included.
A source of +5 VDC is required. The maximum current drain is 10 mA plus up to 50 mA for the LED backlight.
* Australia, New Zealand, Singapore - $5.85
