Woodmizer LT10 portable sawmill bandsaw
CLICK HERE for Complete Details

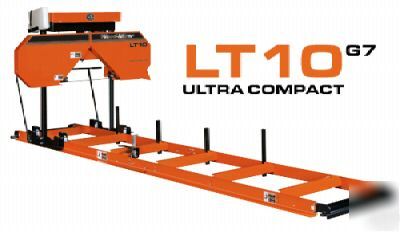

The LT10 is a compact hobbyist mill operated with an easy hand push feed system. It features a 7.0 HP recoil gas engine and will cut up to 100 board feet per hour.* The base mill has the capacity to handle 24" diameter logs by 11 ' long. A space saving feature of the LT10 is that it breaks down and can be stored in your garage or outbuilding.
The Wood-Mizer LT10 is designed as an entry level mill for the weekend sawyers who love the idea of cutting their own lumber but want to minimize their investment.
As with all our mills, the LT10 is backed with the same legendary service, quality and safety features shared by the rest of the family of Wood-Mizer mills.
Power Option: 7.0 HP (5.2kW) Gasoline
Water Lube System: Keeps the blade in optimum cutting condition.
Blade Tension Activator: One throw of the lever gives proper tension automatically (see below).
Four Movement Roller with Ball-Bearing: Ensures smooth, trouble-free head travel back and forth on the bed rails.
Four Rail Cleaner and Roller Wipes: Helps to keep bed rails clean and free of debris.
Large throat capacity: Allows cuts on cants up to 19.5" wide.
Log Clamping System: Allows you to cut within 1" of the bed.
Four Side Supports: Adjustable and removable to ensure accuracy and allow cuts within 1" of the bed rails.
Hand Push Feed System: Conveniently located at a comfortable height for ease of operation.
Plenty of power from a name you can trust!
Engages and disengages blade for optimum safety and maximum blade life.
Makes blade changes and proper blade tensioning a snap.
Accurate and Quick Head Adjustment
Easily adjust for thickness of cut and simply locks in place to ensure accurate cuts.
Weight (with heaviest power options)
.042" (1.mm) thick x 1.25" (32mm) wide
Unlimited 7' Sections (sold separately, call for details)
**Maximum log capacity for a basic LT10 is 3,500lbs. LT15 is 4,000lbs, and LT28 and larger mills are 4,400lbs. (1,996kg)
***Due to many variables, actual production figures may vary. Call for details.
