3300 cfm supply air fan

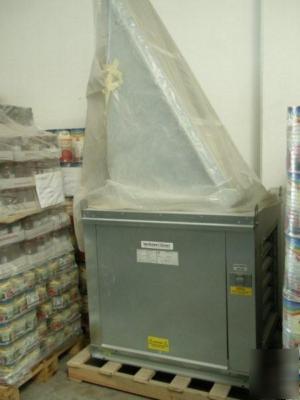

New Ventillation direct Air Fan as specified below.

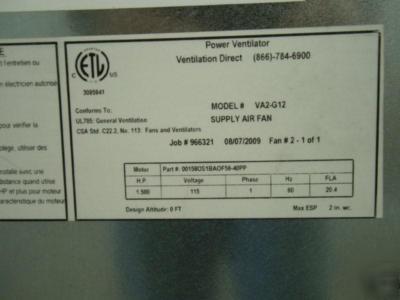

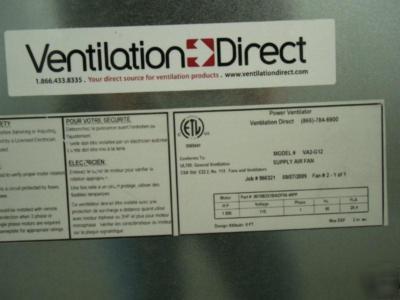

VA2-G12 Untempered Supply Unit with 12" Blower in Size #2 Housing
Supply Fan handles 3322 CFM @ 0.350" wc. Fan runs at 682 RPM.
Supply Motor: 1.500 HP, 1 Phase 115 V, 20.4 FLA, ODP (Open Drip Proof)
Down Discharge - Air Flow Right -> Left
- Sloped Foam Filtered Intake for Size #2 Modular Untempered Supply Unit. 26.813" Wide X 53.625" Long X 31.313" High. Includes 2" Foam EZ Kleen Metal Mesh Filters.
- Gravity Back Draft Damper 22" X 24" , Standard Galvanized Construction, 1 1/4" Rear Flange, for Size 2 Untempered Fan Housing (5182)
- Curb CRB31X20 On Fan # 2 3.000:12.000 Pitch
