7-1/2 hp lagun model 310 lagunmatic cnc vertical mill

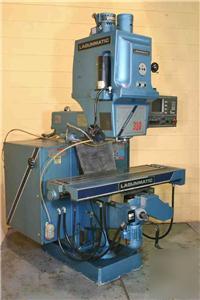

7-1/2 HP LAGUN MODEL 310 LAGUNMATIC CNC VERTICAL MILL:
SERIAL ....................................... 36280
MODEL ........................................ 310 CNC
YEAR NEW ..................................... 1995
AREA OF TABLE ................................ 50" X 10"
SPINDLE SPEEDS (VARIABLE) .................... 55 TO 4200 RPM
LONGITUDINAL TRAVEL .......................... 27"
VERTICAL KNEE TRAVEL (POWER) ................. 16.53"
CROSS TRAVEL ................................. 14"
QUILL TRAVEL ................................. 6"
POWER LONGITUDINAL & CROSS TRAVEL ............ SERVO
POWER DRAW BAR ............................... YES
FEED RATES ................................... 0.01 TO 118 IPM
THROAT ....................................... 0 TO 22"
HEAD ROTATES ................................. 360 DEGREES
TAPER IN SPINDLE ............................. CAT 40
QUILL DIAMETER ............................... 4.33"
3 AXIS DELTA DYNAPATH AUTOCAM CNC CONTROL .... YES
VOGEL LUBE SYSTEM & MIST COOLANT ............. YES
CHROME WAYS .................................. YES
SPINDLE MOTOR ................................ 7-1/2 HORSEPOWER
