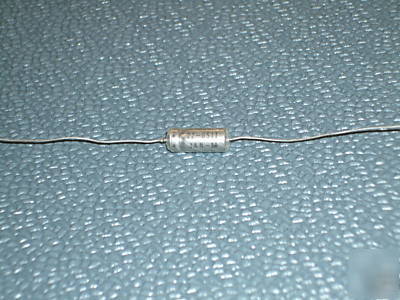

Fixed capacitor- yosemite- M39006/22-0511 (1PCS)
CAPACITANCE VALUE PER SECTION - 120.000 MICROFARADS SINGLE SECTION TOLERANCE RANGE PER SECTION - -10.00 TO 10.00 PERCENT SINGLE SECTION NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION - 15.0 DC SINGLE SECTION NONDERATED OPERATING TEMP - -55.0 DEG CELSIUS MINIMUM AND 85.0 DEG CELSIUS MAXIMUM BODY STYLE - 26B W/O MTG FACILITIES, AXIAL TERMINALS BODY DIAMETER - 0.312 INCHES MAXIMUM BODY LENGTH - 0.719 INCHES NOMINAL SCHEMATIC DIAGRAM DESIGNATOR - 3C ELECTRODE(S) GROUNDED TO CASE, W/GND TERMINAL TERMINAL TYPE AND QUANTITY - 2 UNINSULATED WIRE LEAD TERMINAL LENGTH - 2.250 INCHES NOMINAL TERMINAL DIAMETER - 0.025 INCHES NOMINAL CASE MATERIAL - METAL CASE INSULATION MATERIAL - PLASTIC CAPACITIVE ELECTRODE MATERIAL - TANTALUM DISSIPATION FACTOR AT REFERENCE TEMP IN PERCENT - 25.0000 DC LEAKAGE AT REFERENCE TEMP - 1.000 MICROAMPERES ELECTRICAL POLARIZATION - POLARIZED RELIABILITY INDICATOR - ESTABLISHED RELIABILITY FAILURE RATE LEVEL IN PERCENT - 0.0100 FEATURES PROVIDED - HERMETICALLY SEALED CASE
