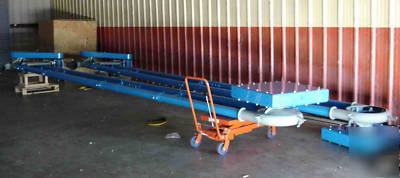

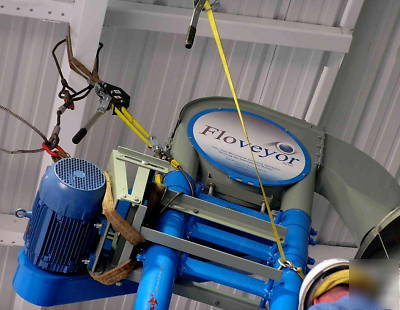

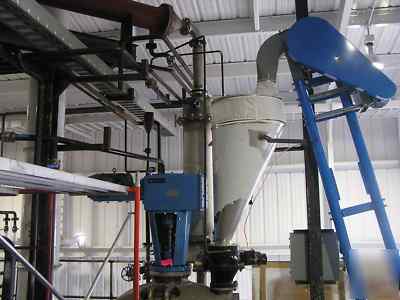

Floveyor conveyor system with storage hoppers
PRICE REDUCTION! Was $28,900 now $20,000 each
EACH Floveyor Model F5-2211 aeromechanical conveyor system includes:
Screw Feeder Model FS534d2E-27
Bin for Storage of 250 cu ft.
* Carbon steel construction that is powder coated (blue color).
* 5" tubes with 21'8" centers of the sprockets.
* Polyurethane discs mounted on a polymer coated wire rope.
* 5 HP TEFC bottom drive motor suitable for 230/460V/3Ph/60Hz power.
* V-Belt drive to the inlet sprocket; all enclosed within the base housing.
* Feed chute with baffle, round inlet collar, and vent sock.
* 10" discharge chute with 2' of flex hose and hose clamps.
* Discharge vent chute, 12" outlet, carbon steel powder coated (grey color).
* Discharge flex sleeve for connection to Floveyor.
* Gear reducer and 3 HP 230/460V/3Ph/60Hz TEFC motor, constant speed.
* Support legs with adjustable height.
* 6 -0 diameter inlet with flanged connection.
* 45 transition to 8 diameter outlet.
* 12" flexible outlet connection with band clamps.
* 2 HP, TENV vibratory motor, 230/460/3/60.
* Force of vibratory motor is infinitely adjustable.
* All internal and external welding ground smooth.
* Industrial epoxy painted interior and exterior surfaces.
* Internal cone agitator with patented vertical supports assuring mass-flow discharge.
* 3-Ply, food grade, continuous main flexible sleeve.
* Aircraft strength steel cable clamps for main sleeve.
* Patented stainless steel, high strength hanger arms exceed strength requirements.
* Patented non-wearing, circular vibration isolation pads that will not wear out.
* Manual hand crank actuator.
* Nylon inner gate liner and blade slide guides.
* Spring loaded/wear compensating braided Teflon packing bonnet seal.
* Gate construction provides for stainless steel and carbon steel material contact.
* 12" square flange to 12" round stub end transition, carbon steel.

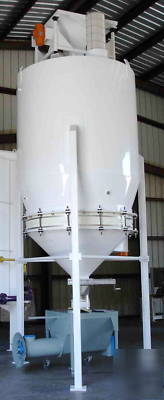

Hoppers are 7 diameter with a 6 4 straight side, the cone is 5 6
