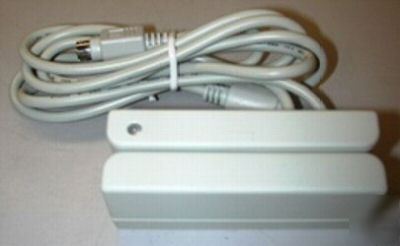

Uic MSR200 series keyboard magnetic card reader
Uniform Industrial Corp. (UIC) MSR200 Series Keyboard Simulator Magnetic Card Reader
The unit was removed from service in working condition. I tested basic functions which included variable speeds of both platens and the head and both work. The timer works. The only thing I could not test was anything that required additional facilities like air supply or water supply.
Serial Number: Quantity Availavle
Electrical Requirements: Input: 5VDC, 0.3A Max
Manual for NEW Part Number Included!!
* Data read from magnetic stripe card emulates keyboard input
* Compact size can be mounted on keyboard or any flat surface
* Software and hardware modification not required
* Bi-directional card swipe and read capability
* Audible response for good read 1 beep , missing data 2 beeps and non successful read 3 beeps
* LED indications: Green = Transmitting Data, Yellow = Missing Data, Red = Error
* Compatible with IBM PC, AT/XT, PS-2
* Recording Method: Two-frequency coherent phase (F2F), compatible with ISO 7811 and AAMVA
* Swipe Speed: 5 to 55 in/sec (worst case with +/- 12% jitter card)
* Power Requirements: Reader is low-power CMOS. Power is supplied by the computer.
* Operating Temperature: -10 C to +50 C
* Operating Humidity: 10% to 90% relative humidity
* Magnetic Head Life: 300,000 passes minimum
* Dimensions: 3.94 L x 1.34 W x 1.58 H
* Cable Length: Reader to Keyboard = 1 ft. , Reader to PC = 5 ft.
* Connector: 5-Pin Din connector, 6-Pin Mini-Din connector
