Xp power PMB200 series ac-dc 200W power supply reduced

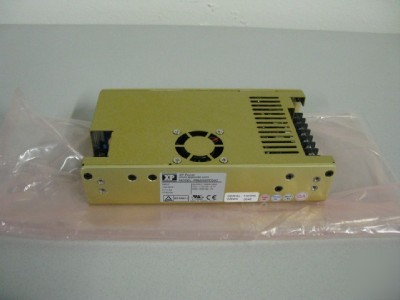

XP Power PMB200 Series AC-DC 200W Power Supply 12V/24V
Up for your consideration are XP Power PMB200 Series AC-DC Switchers/Power Supplies. Their model numbers are PBM200PD04-C. Units are new, but do not come in their original box.
3.2 A at 115 VAC, 1.6 A at 230 VAC
20 A at 115 VAC, 40 A at 230 VAC, cold start +25 C
90 A max at 115 VAC/60 Hz, 150 A max at 230 VAC/50 Hz
Internal T4 A/250 V in line and neutral
See table and note 5 of datasheet
20 ms minimum at full load & 110 VAC
4% max deviation, recovery to within 1% in 500 s for a 25% load change
2% max pk-pk, 20 MHz bandwidth with a 22 F electrolytic & a 0.47 F tantalum capacitor
112-140% Vnom output 1 only, recycle input to reset
110-150% typical, auto recovery
Shutdown at +85 C (singles) or +105 C (multi outputs) with auto recovery, measured internally
Single output models only. Compensates for up to 0.5 V drop
On = Logic low or open circuit, Off = Logic high or short circuit
4000 VAC Input to Output 1500 VAC Input to Ground 500 VAC Output to Ground
AC OK = TTL logic high AC not OK = TTL logic low
350 kHrs to MIL-HDBK-217F at +25 C, GB
Power fail detect, remote on/off
0 C to +70 C, derate linearly from 100% power at +50 C to 50% power at +70 C
C versions have internal fan, B versions are derated with convection cooling or require 25 CFM (see note 4 of datasheet)
Half sine pulse. acceleration 50 g, 11 ms duration, 3 shocks in each direction, unpackaged, non-operating
Sinusoidal 10-55 Hz, amplitude 0.15 mm, 30 min/axis, unpackaged, non-operating
EN55011 & FCC?Class B conducted & radiated
EN41000-4-2, level 3 Perf criteria A
EN61000-4-3, level 3 Perf criteria A
EN61000-4-6, 3 V Perf Criteria A
EN61000-4-4, level 3 Perf criteria A
EN61000-4-5, level 3 Perf criteria A
EN61000-4-11, 30% 10 ms, 60% 100 ms, >95% 5000 ms, Perf Criteria A, B, B
EN60601-1, UL60601-1, CSA22.2 No. 601-1 per cUL
