Hydraulic gear pump-group 3- 34CC/rev 2 bolt 13T shaft

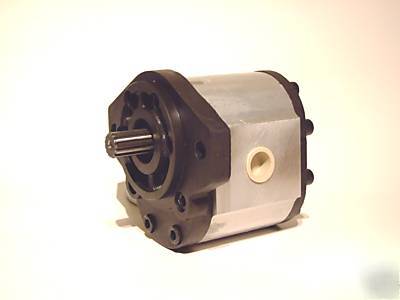

HYDRAULIC GEAR PUMP, GROUP 3 34CC/REV-
34cc/rev displacement (delivering 47LPM @ 1500rpm)
2 bolt SAE B mount, 13 tooth splined shaft
Outlet port- 3/4" BSP threaded
Pressure- 200 bar working, 250 bar max.
Speed- 2000rpm rated, 3000rpm max, 400rpm min

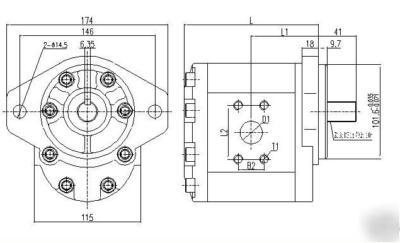

From drawing- dimension L- 139mm, L1- 69mm
