Ludlum 375 digital area monitor hydrogen detector

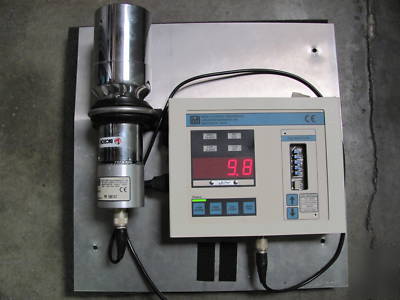

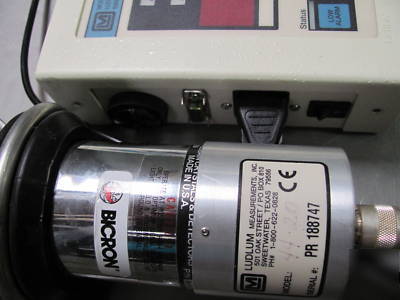

* (1)LUDLUM 375 DIGITAL AREA MONITOR (P/N: KAC804/45M-AC-C)
This was purchased from a company that went out of business. I was told it was working before removed from its case. When I plugged it in all lights came on and started making beeping noise. Please email me any question you may have.Good Luck!!!
Ludlum MODEL 375 DIGITAL AREA MONITOR
COMPATIBLE DETECTORS: G-M, proportional, scintillation, and neutron
DISPLAY: 4 digit LED display with 0.8"(2cm) character height
DISPLAY UNITS: Can be made to display in microR/hr, mR/hr, R/hr, microSv/h, mSv/h, Sv/h, microrem/hr, mrem/hr, rem/hr, cpm, cps, and others
RESPONSE: Typically 3 seconds from 10% to 90% of final reading
STATUS: (green light) Indicates the instrument is functoning properly
LOW ALARM: Indicated by a yellow light and slow beep (1 per second) audible tone (can be set at any point from 0.0 - 9999)
HIGH ALARM: Indicated by a red light and fast beep (4 per second) audible tone (can be set at any point from 0.0 - 9999)
NOTE:Audible indicators can be configured as a single beep if desired.
DET FAIL: (red light and audible tone; greater than 68 Db at 2 feet) Indicates detector overload, no count from detector, or instrument failure
LOW BAT: (yellow) Indicates less than 2 hours of battery power remaining
CONNECTOR: Series "C" (others available )
CALIBRATION CONTROLS: Accessible from front of instrument (protective cover provided )
HIGH VOLTAGE: Adjustable from 200 - 2500 volts
THRESHOLD: Adjustable from 2 - 100 mV
DEAD TIME: Adjustable to compensate for dead time of the detector and electronics (can be read on the display)
OVERLOAD: Senses detector saturation (indicated by display reading"-OL-")
OVERRANGE: Indicates the radiation field being measured has exceeded the
counting range of the instrument (indicated by display reading "-")
DATA OUTPUT: 9 pin connector providing 5 decade log output, RS-232 output, signal ground connection, FAIL and Alarm signals (current sink), and direct connection to battery and ground
REMOTE(optional): Model 271, or Model 272 remote units
POWER: 95 - 135 VAC (178 - 240 VAC available), 50 - 60 Hz single phase (less than 100 mA), 6 volt sealed lead acid rechargable battery (built in)
BATTERY LIFE: Typically 48 hours in non-alarm condition, 12 hours in alarm condition
BATTERY CHARGER: Battery is continuously trickle charged when instrument is
connected to line power and turned on
CONSTRUCTION: Aluminum housing with ivory polyurethane enamel paint
TEMPERATURE RANGE: -4 degrees F(-20 degrees C) to 122 degrees F(50 degrees C)
May be certified for operation from -40 degrees F(-40 degrees C) to 150 degrees F(65 degrees C)
SIZE: 7.4" (18.7 cm)H X 9.7" (24.6 cm)W X 2.5" (6.4 cm)L
USED AND IN GREAT WORKING/PHYSICAL CONDITION!!!!
