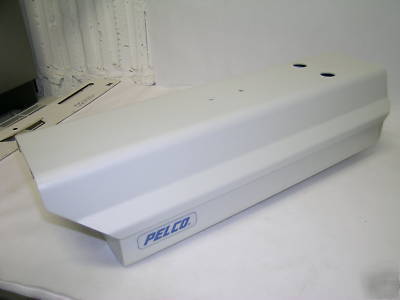

Pelco EH4718DB-1 enclosure camera housing hter blower
UNLESS THE ADD STATES OTHERWISE
DESCRIPTION: 120V HEATER BLOWER
Pelco EH4718DB Housing outdoor drop-bottom EH4718DB Pelco EH4712DB/EH4718DB Series of environmental enclosures are constructed from die cast and extruded aluminum and designed to replace our EH4600 Series enclosures.
The EH4718DB enclosure will accept CCTV cameras with either fixed focal length lenses or motorized zoom lenses. Models with factory installed heater and blower feature a pre-wired PC board with internal electronics to simplify installation and setup of camera and enclosure accessories.
Unlike other CCTV enclosures, the Pelco EH4718DB Series opens from the bottom and the camera sled is attached to the top of the enclosure. Internal adjustments can be made without interfering with the video because the camera remains in its normal viewing position.
Cable entry glands and mounting holes are located on the top of the enclosure, making it ideal for ceiling applications, especially where limited accessibility is a concern.
The EH4718DB Series enclosures are available with factory-installed heaters and blowers. Optional field-installed accessories include a window defroster, preset positioning lens wiring harness, 120 VAC electrical outlet and lock kit.
Maximum Lens and Camera Combination including BNC connector, H x W x L inches: EH4718DB: 4.00 x 3.50 x 16.50/EH4718DB-1/EH4718DB-2: 4.00 x 3.50 x 12.50
* Indoor/Outdoor Applications
* Bottom Opening Access Door
* Factory/Field-Installed Accessories
* Cable Entry Glands and Mounting Holes Located on Top of Enclosure
* Suitable for Mounting in Parking Garages and Under Building Eaves or Installations Where Wall Mounting is not Practical
