Planar DS15 15" touch screen pos dvd rom kiosk computer
* Appliance-like installation and operation
* Compact form factor: 3.5" deep and only 11 lbs.
* Modular design for adding peripheral options
* VESA-compatible mounting system
* 15" capacitive touch screen
* High bright display (1024 x 768 XGA resolution) delivers more than twice the brightness of standard displays
* High-performance tablet PC motherboard with advanced graphics chipset
* Fanless design for silent operation
* Onboard hard drive and CD/DVD ROM drive
* Use in standalone or networked environments
* ULV Mobile Intel Celeron M
* 800 MHz processor (400MHz FSB,0.13u
* 512KB flash with boot block or above
* Integrated Intel GMCH-M 852GM
* Supports Dual Display Options
* Viewable Size: 15-inch
* High brightness = 500 NITs
* Support XGA 1024 x 768 resolution
* AC-97 Rev 2.2 Compliant
* Integrated 2W Speakers 2 SPK
* Integrated Full Duplex Microphone x 1
* Built In 10/100 Ethernet Port
* 2.5 , 9.5mm height, 5V
* External Exposed Connectors:
* 10/100 Ethernet Port (RJ45) x 1
* VGA output (D-sub15) x 1
* Internal Covered Connectors:
* USB 2.0 x 3 for use with Expansion Modules
* USB 2.0 Type A x 1 for touch screen
* Worldwide EMI and Safety Approvals
* Microsoft Windows XP Pro
* Length...........................................17.4 inches (435.1 mm)
* Height ...........................................13.6 inches (338.9 mm)
* Depth ...........................................3.3 inches (83 mm)
* Weight...........................................11.6 lbs. (5.3 kg)
* Security: Microsoft Security Essentials provides real-time protection for your home PC that guards against viruses, spyware, and other malicious software.
* Operating System: Genuine Microsoft Window XP Professional freshly installed with certificate of authentication (install disk not included)

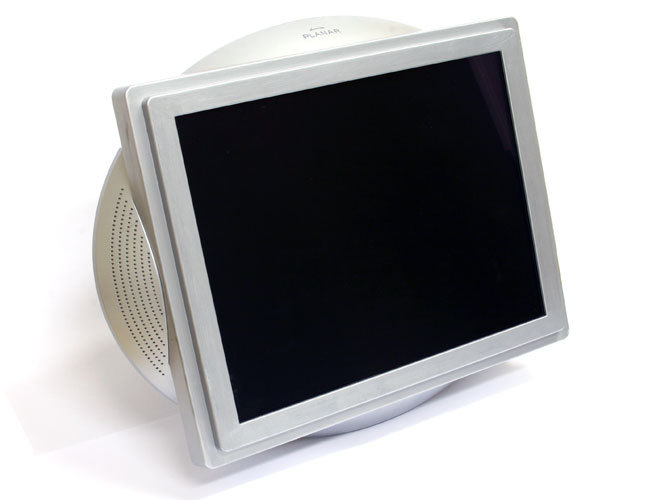

* Planar DS15 15" Touch Screen Kiosk Computer
* Note: Unit contains scratches but has been tested and in great working condition
