Sorensen xantrex DCS80-37 dcs 80V dc power supply gpib

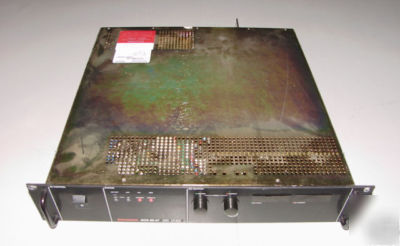

Sorensen DCS80-37 80V 37A 3000W DC Power Supply
The DCS Family of 1 kW and 3 kW programmable power supplies incorporate current mode switching rates up to 100 kHz in high power density,low profile chassis.Utilizing unique packaging techniques,the DCS Family provides continuous full output power (1 kW or 3 kW)in any volt/amp combination within the rated output voltage and current limits.
The DCS 3 kW Models have push button control of the output standby mode, OVP reset, remote/local programming and preview status of voltage, current and OVP setpoints.
This family has 10-turn potentiometers to adjust voltage and current settings that are displayed simultaneously. LEDs indicate overtemperature, remote programming,shutdown and overvoltage protection, status and constant-voltage/current mode operation.
* Output 1/Range 1 Max. Current: 37 A (0 V to 80 V)
* Output 1 Max. power: 3000 Watts
* Range programming modes: Auto
* Load Regulation, Voltage: 80 mV
* Load Regulation, Current: 37 mA
* Line Regulation, Voltage: 80 mV
* Line Regulation, Current: 37 mA
* Transient Response Time: 500 us
* Remote Sensing Measurement: Yes
* Multiple Unit Combinations: Parallel, Series
* Overvoltage Protection: Yes
* M9C - GPIB\RS-232 Interface
