Square d transformer 2500/3333 kva 12470/7200 480/277

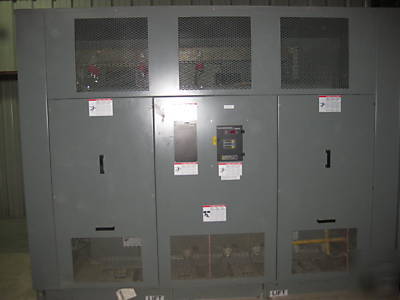

2500kVA / 3333 kVA Transformer
This 3 Phase Transformer is in Great Condition both Externally and Internally. This transformer was maintained and serviced frequently before we professionally removed this unit ourselves. Includes Square D PowerLogic Temperature Control.

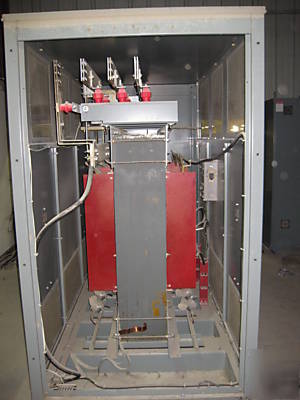

Insulated Power Dry Type Transformer

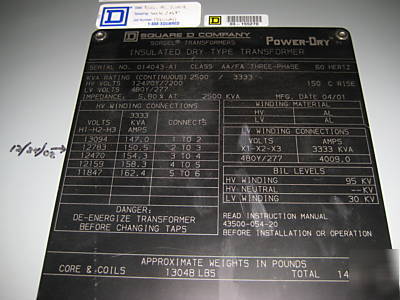

Serial No. 014043-A1 Class: AA / FA Three-Phase 60 Hertz
kVA Rating (Continuous): 2500 / 3333 150 Deg C Rise
Impedance: 5.80% at 2500 kVA MFG. Date: 04 / 01
Volts: H1-H2-H3 3333 kVA Amps Connects
Core & Coils: 13048 lbs Total: 14921 lbs
Dimensions: 54" Depth x 120" Width x 96" Height
