Symbol long range barcode scanner ls-3070LR-I000A

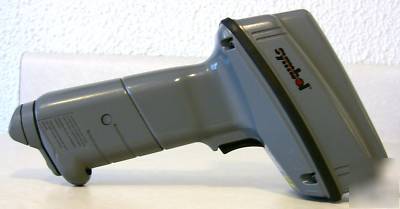

used Symbol LS-3070 I000A Long Range Bar Code Scanner with battery.
Even after sitting in storage most all batteries still hold a charge without a charger.
Does come with battery. Does not come with battery charger(s).
14 Day Warranty on Hand Held units only.
The LS 3070 Cordless Scanner is the first scanner that goes where you go - anywhere up to 50 feet from your host. That's because the LS 3070 uses low-power (no license required) radio frequency (RF) transmissions to communicate with your host computer. It makes even the most difficult jobs go faster, smoother and easier - because there's no cable, there are no restraints.
Wireless scanning is the key to increased productivity in a great many applications:
In factory or warehouse applications where the cable restricts movement and wireless scanning is simply a better solution.
In harsh environments where the cable can get damaged and make your scanner system inoperable.
In retail environments where a cabled scanner limits access outside of the counter area and heavy, oversized or bulk items are difficult to bring to the counter for checkout.
In fact, LS 3070 is the first and only hand-held laser scanner to combine mobility, durability and aggressive scanning performance.
Greater Convenience and High Performance, Too
The LS 3070 Cordless Scanner delivers all the performance you've come to expect in hand-held scanners from Motorola Symbol Technologies. It's built on the heritage of our industry leading scanners, known throughout the world as the benchmark for fast, accurate bar code reading and reliability in tough outdoor, industrial and retail environments.
LS 3070 Cordless Scanners are built for unmatched reliability. That means LS 3070 can withstand repeated six-foot drops onto concrete...operate in high humidity, heat, cold, rain and snow...anywhere a cabled scanner can go and places it can't, LS 3070 can go, without the cable restraints.
Universal interface base allows connectivity to many popular PC, POS and computer terminals for easy integration into your existing data collection environment.
Base station features replaceable interface cable modules for easy upgrades to new host terminals, and acts as a holder as well as recharge station for LS 3070's battery.
Rechargeable batteries charged within two hours, with each charge yielding a minimum of eight hours of operating time. Batteries can be charged in the scanner or removed and charged separately to maximize scanner utilization.
Power down circuitry scanner turns itself off after successful data transmission to further conserve battery power.
LS 3070 Specification Highlights
Models: LS 3070STD - Standard CDRH Class II
LS 3070LR - Long Range CDRH Class II
LS 3070HV - High Visibility CDRH Class IIIA
Light Source: 675 nm laser diode
Scan Rate: 36 (+/-3) scans/sec (bi-directional)
Skew: LS 3070STD - +/-65 deg. from normal
LS 3070LR/HV - +/-55 deg. from normal
Pitch: LS 3070STD - +/-55 deg. from normal
LS 3070LR/HV - +/-45 deg. from normal
Print Contrast: LS 3070STD/HV - 20% at 675 nm
LS 3070LR - 50% at 675 nm
Decode Capability: UPC/EAN, UPC/EAN with supplementals, Code 39, Code 39 Full
ASCII, Code 128, Codabar, Interleaved 2 of 5, Discrete 2 of
Scanner Weight: 14.7 oz. (417 gms)
Ambient Light: Immune to normal artificial indoor and natural outdoor
(direct sunlight) lighting conditions
Operating Temperature: 32deg. to 104deg. F (0deg. to 40deg. C)
Storage Temperature: -40deg. to 140deg. F (-40deg. to 60deg. C)
Humidity: 5% to 95% (non-condensing)
Durability: Multiple 6-ft. (183 cm) drops to concrete
Environmental: Sealed against windblown dust and rain
ESD: Conforms to 15V rating as per IEC 801-2 (1985)
EMI Generation: Conforms to FCC Class A and B limits
Radio Range: Up to 50 ft. and 100 coexisting systems*
Frequency: Unlicensed 2.4 GHz pt.-to-pt. narrow band
Interfaces: RS-232-C, AT/XT/PS/2; keyboard wedges, OCR, OCIA,
4693/4683/3683/3653, NCR 7052/2152/215/280, Fujitsu
9000/8770/7990/7880/7770, Nixdorf 8812, ICL 9505/07/18/20,
dual RS-232-C, IBM 3278/3179/3180/3178/316X/319X/3151/347X,
DEC VTXX/3XX/4XX, HP700/234X, WYSE 60/85/160/185
Input Devices: Accepts dual-track magnetic stripe reader
Data Formatting: Complete data editing capability
Charge Time: 2-hour fast charge
Base Dimensions: 3.5" (8.9 cm) H x 9.5" (24.1 cm) L x 4" (10.2 cm) W
* Due to the nature of radio transmission, signal strength and range will vary
depending on the application environment.
