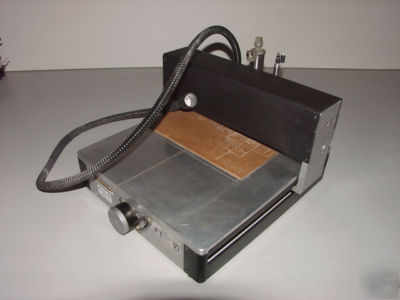

T-tech 5000 hs high speed circuit board prototyper
T-TECH 5000 HS HIGH SPEED CIRCUIT BOARD PROTOTYPER
T-Tech's HS model has been the industries benchmark in circuit board prototyping, bringing both performance and value to the table. With a range of spindle speeds from 6,000 to 60,000 rpm, it affords users optimal performance and precision needed in the prototyping process. The HS is able to accomplish traces and spaces as small as .004" and meets the requirements of RF substrate manufacturers.
This unit is used in the following areas:
* MIN INSULATION WIDTH: 4 MILS
* SPINDLE: 6,000 - 60,000 RPM
* WORKING AREA: 254mm X 330mm (10"X13")
* DRILLING SPEED - SOLENOID/AIR: 100/120 PER MIN.
* TRAVERSE SPEED: 63.5mm per second (150" MIN)
* X/Y POSITIONING SYSTEM: Precision Stepper Motors
* TOOL CHANGE: Semi Auto/Software Prompted
* TOOL COLLET: Standard 1/8"
* POWER SUPPLY: 120 or 230 VAC
