Tie rod cylinder 3000PSI, 5" bore, 36" stroke, 2"shaft

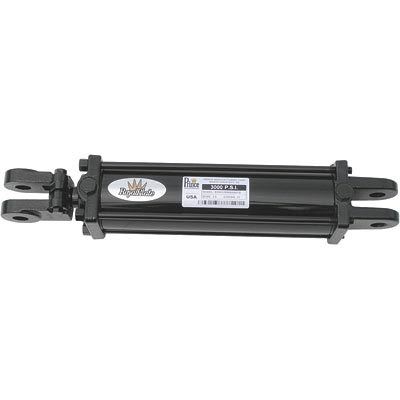

Tie Rod Cylinder 3000PSI, 5" Bore, 36" Stroke, 2"Shaft
Tie-rod construction, double-acting, heavy-duty, high-strength tie rods. With ground and polished chromed piston rod, cast iron piston with O-ring seals and back up washers, polyurethane rod wiper, cast malleable rod clevis, zinc plated pins and clips. The maximum working PSI is 3000 and bursting PSI is 5000. Seal kits are available also. U.S.A. Max. PSI: 3,000, Bore Diameter (in.): 5, Stroke Length (in.): 36, Closed Pin Center (in.): 48 1/4, Shaft Diameter (in.): 2
