Turck levelprox level sensor #lpre-M30-AP6X2-H1141

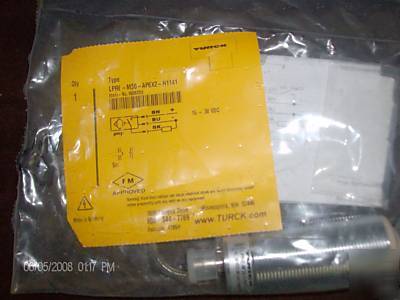

Unused surplus item in sealed bag
is a unique, non-invasive ultrasonic sensing solution that provides accurate media detection through metal container walls. Levelprox mounts to the outside of a container with no compromise to structural integrity, and is ideal for high pressure, hazardous or sterile applications.
All it takes to reliably detect the presence of liquid through a metal container is to program the empty and full conditions into the
levelprox using a simple teach button. The sensor generates a high frequency ultrasonic pulse that is transferred into the container wall through a coupling gel. As the pulse enters the container wall it is influenced by the containers contents. Levelprox analyzes this pulse and compares it to the conditions that were programmed into the memory of the sensor.
The M30 dual-mode levelprox is ideal for level detection applications where stainless steel sanitary fittings are not required. The M30 delivers non-invasive detection without the additional expense of a sanitary housing. Its 30 mm barrel can be easily mounted using a welding adapter or a metal strap kit.
With dual operating modes, levelprox p
rovides reliable detection in even the toughest applications.
Evaluates the ultrasonic pulse as it reverberates within the container wall. This pulse travels through the container wall until it reaches the inner wall. The reverb mode works well when the liquid to be detected has a low viscosity, leaving little or no coating on the container wall. The reverb mode should also be utilized when stirring devices are used inside the container.
Evaluates the ultrasonic pulse as it travels through the liquid and echoes off of the opposite container wall. Highly viscous liquids can be reliably detected with the echo mode. The mode looks past the layers of product that can coat the inside of a container to give the true level of the product.
* Container: 1-15mm Wall Thickness
* Min. Container Diameter: 100mm Stainless Steel
* Echo: 2000mm Stainless Steel
* Reverberation: No Limit
* Suitable Container Materials
* Switchig Element: Normally Open
* Supply Voltage Indication: Green LED
* Switching Status Indication: Yellow LED
* Alarm Indication: Flashing LED
* Brass Barrel, Chrome Plated
