5 - 24 led project boards pcb

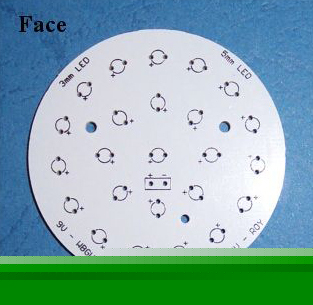

* Printed Circuit Board for 24 3mm or 5mm LED's
* Circular board shape for cone shape light beam
* High quality board material (FR-4), much longer lasting
* Board thickness 1.6mm for heavy duty use, for example, in motor vehicles
* Holes available on board for installation and fixation
* Carefully designed LED placement marks on top layer, signs will be under LED's after installation, you'll enjoy assembling work and have a clean and tidy Module
Red, Orange, Yellow (ROY) usually 1.8V to 2.2V forward voltage
White, Blue, Green, UV (WBGU) usually 3.0 to 3.6V forward voltage
* For ROY Group, apply 6VDC, total current for the Module is 160mA, power consumption about 1W
* For WBGU Group, apply 9VDC, total current for the Module is 160mA, power consumption about 1.5W
* If Red LED's are assembled onto this board, they can be used for car brake lights.
* Red light is also good for night vision.
* If Orange LED's are assembled, the Module can be used as an indicatot light.
* Wide angle white LED's are a good soft light source.
* Spot mode (20 degree view angle) is a suitable source for distance lighting, but light covering area is smaller.
A lot of colour combinations and effects can be created. For example, a mix of blue and green gives you very nice ocean green; white and blue gives you icy blue light.
