50" x 36" y monarch vmc-150 w/ apc vertical machining c
50" X 36" Y Monarch VMC-150 w/ APC VERTICAL MACHINING C

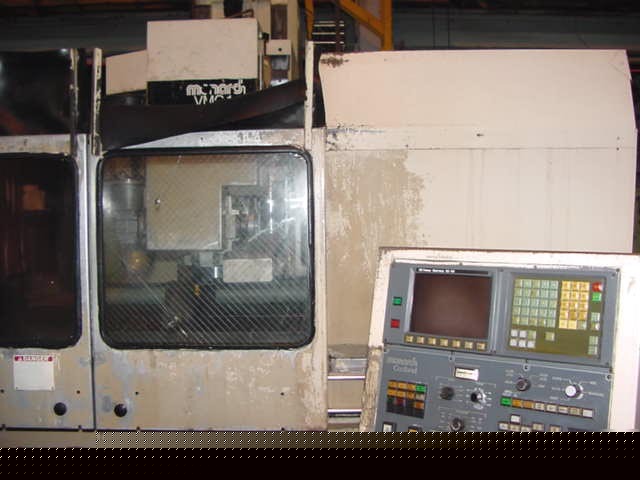

50" X Axis 36" Y Axis Monarch VMC-150 w/ APC VERTICAL MACHINING CENTER, Fanuc 15M Control
TABLE WORKING SURFACE.................... 30" x 60"
OVERALL TABLE SIZE....................... 34-1/2"x64-1/2"
TABLE TRAVEL, X-AXIS (LONGITUDINAL)...... 50"
TABLE TRAVEL, Y-AXIS (CROSS)............. 36"
SPINDLE SLIDE TRAVEL, Z-AXIS............. 10"
VERTICAL SLIDING HEAD ADJUSTMETN, W-AXIS. 23"
MIN./MAX. HEIGHT, SPINDLE NOSE TO TABLE.. 0" / 34"
DIST. CENTERLINE TO COLUMN............... 33-1/2"
TABLE LOAD CAPACITY...................... 3,000 LBS.
QUILL DIAMETER........................... 5-3/4"
QUILL TRAVERSE RATE...................... 400 IPM
QUILL FEED RATE.......................... 0.01 TO 400 IPM
SPINDLE TAPER............................ #45 ASA
SPINDLE SPEEDS........................... 30 TO 5,200 RPM
TABLE & SADDLE POSITION SPEED............ 400 I.P.M.
POWER ELEVATION OF HEAD, TRAVERSE RATE... 100 I.P.M.
