5K tinius olsen series 5000 tensile compression tester
4433 East Eight Mile Road Warren, MI 48090-0886 (***)756-4280 Fax (***)756-8009

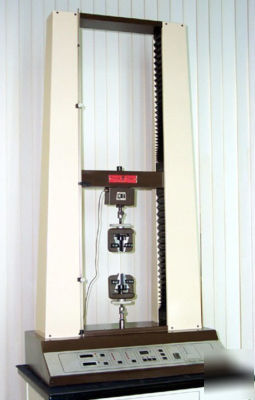

USED 5,000 lbf Capacity Tinius Olsen, Series 5000, Electro-Mechanical
Tension and Compression Testing Machine
Tension Testing Opening (Less Tooling): 40"
Compression Testing Opening (Less Tooling): 40"
Distance Between Columns/Screws : 16.25"
Testing Speed (IPM): .02 to 20
Crosshead Adjusting Speed (IPM): 20
Approximate Overall Dimensions (WxDxH): 33" x 20" x 65"
Electrical Requirements (V, Hz, Ph): 120/240, 60, 1
Tinius Olsen Series 5000 Push Button Control Panel
Tinius Olsen 5000 lb. Load Cell
