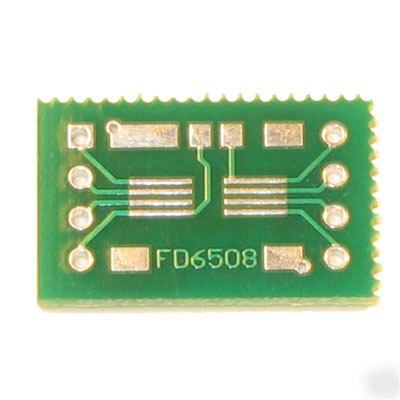

FD6508 8-SSOP to .600 DIP Adapter/Prototype Board
Accepts 8-pin SSOP or TSSOP (0.026in/0.65mm pitch)
The FD6508 adapter provides ample space for a variety of medium density surface mount circuit designs. The peripheral part mounting zones and circuit foils permit the installation of devices in-line with the IC, or across adjoining circuit. Foil modification (see below) and jumpers can be used to configure board to meet 0603, 0805, Mini-Melf, A-size (3216-18 EIA) Tantalum devices and many more. Diodes, inductors, LED s and other device within size range above can be mounted as well. This 16-pin DIP can be plugged into a 600 mils sockets or solder less breadboards, or soldered onto a prototype board. This little board is great for a wide range of usage.
Foil Modification Expand Versatility:
* Score foil with sharp razor to cut the circuit
* New mounting zone has been created
* Solder component to new mounting zone
Board Specifications: Board Material: 0.062 in. thick FR-4, Glass Epoxy or equivalent.
Circuit: 1 oz copper with solder coated pads both sides.
DIP: 16 pins, 600 mils, 0.1 in pitch.
