Audio amplifier / timer / volt com ics kit #2 (#1105)
Audio Amplifier / Timer / Volt Com ICs Kit #2 (#1105)
This is the Audio Amp, Timer & Voltage Comparator DIP ICs Design Kit #2. This DIP Design kit comes with the three most popular ICs today: the very popular LM380 Audio Amplifier ICs, the LMC555 CMOS Precision Timer ICs, and the LM339 Quad Voltage Comparator ICs, all in DIP packages. These three ICs are the core of many exciting circuits.
You also get different values of Carbon Film Resistors, NPN & PNP Transistors (can be used as power drivers), Aluminum & Ceramic, & Tantalum Caps, Trimpots, Signal & Power & Zener Diodes, LEDs, a Relay, Electret Microphones, Battery Clips, Pushbutton Switches, and two 8-Ohm Miniature Speakers. You also get some Electronic Hardware for interacing your designs to the outside world. To further help with your circuit development, you also get a NightFire 162 plated-thru hole, blank Proto-Type PCB. This PCB has 4 mounting holes, is 1.1" x 2.0", is 0.062" thick, has .100" centers, is double-sided and made of FR-4 material. Use this PCB to develop your circuits.
LM380, Audio Power Amplifier, 2.5 Watt, DIP-8

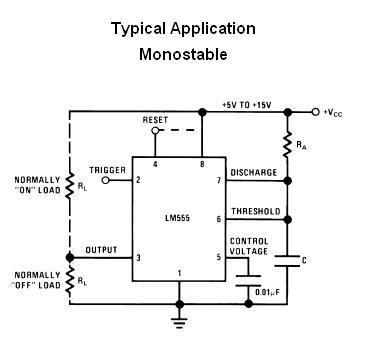

LMC555, CMOS Precion Timer, Low Voltage, DIP-8
LM339, Quad Voltage Comparator, DIP-14
NightFire, 162 Holes, Double-sided, .062" Thick, FR-4
14 Pin, Low-Profile, Solder Tab
2N4401, NPN, General Purpose, TO-92
2N4403, PNP, General Purpose, TO-92
1N4148, Silicon, Signal, Axial
1N4001, 100v, 1 Amp, Silicon, Axial
1N4007, 1000v, 1 Amp, Silicon, Axial
BZV85-C6V2, 6.2V, 1/2 Watt, Axial
Yellow, Bright, Round, T 1 3/4
Fujitsu #VS-9MB, 1 Form A (SPST -NO), Coil = 9VDC, Contacts = 10 Amps
9 Volt, Snap-Type, 4" Long Leads
RCA type, Right Angle, PCB Mount
