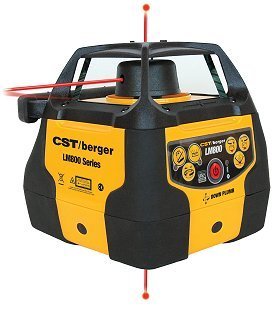

Cst/berger LM800DPI - interior package
Electronic Self-Leveling Dual Slope Rotary Laser w/Plumb Down
This version of the LM800 is a tri-beam, dual slope rotary laser with horizontal and vertical self-leveling and many features to make the instrument ideal for all indoor and outdoor jobs. Not only can you plumb up, but down as well. The LM800 is ideal for outdoor leveling and grading jobs with dual-slope capability up to 10%. This laser offers anti-drift which signals the operator when he unit has been moved out of position. It also offers variable speed rotation, preset angles on sweep mode and CW/CCW Head rotation for fast and easy alignment.
Accuracy-Horizontal: +/- 1/16 @ 100 (+/- 1.5mm @ 30m)
Accuracy-Vertical: +/- 1/8 @ 100 (+/- 3mm @ 30m)
Range: Up to 2800 (850m) Diameter with Detector
Leveling Type: Fully Electronic Servo Motor-Driven Horizontal and Vertical Self-Leveling, +/- 5 Degrees
Grade/Slope: Dual Slope up to 10%
Environment: Water and Dust Resistant
Power: Ni-Mh Rechargeable Battery/Charger
* Ni-Mh Rechargeable Battery/Charger
