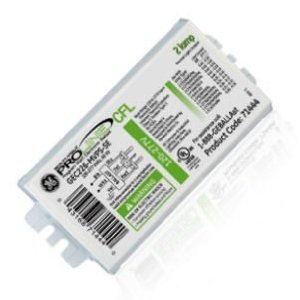

G.e. multivolt proline cfl electronic ballast
2 CFQ26W, FT24 or 1 24W CFTR32 120-277V ProLine
Multi-voltage technology means a single ballast handles voltage from 120V to 277V
Programmed starting for extended lamp life
Color coded poke-in connectors simplifies wiring
Ballast Type Electronic Program / Rapid start
Starting Method Programmed start
Line Voltage Regulation (+/-) 10%
Ambient Temperature (MAX) 104 F (40 C)
Case Temperature (MAX) 75 C (167 F)
Sound Rating A (20-24 decibels)
Additional Info Auto restart, Thermally protected, Universal voltage
Mount Length (M) 4.63 in (118 mm)
Mount Width (X or F) 2.4 in (61 mm)
Remote Mounting Distance to Lamp 12 ft
Remote Mounting Wire Gauge 18 AWG
