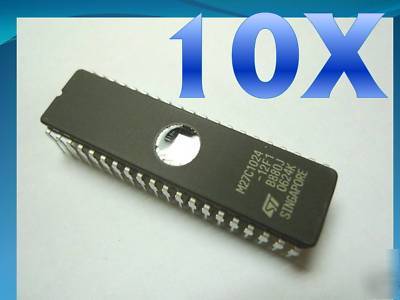

10PCS st 27C1024 uv eprom M27C1024 *1M* M27C1024
SPECS: http://www.datasheetcatalog.org/datasheet/stmicroelectronics/2381.pdf
The M27C1024 is a 1 Mbit EPROM offered in the
two ranges UV (ultra violet erase) and OTP (one
time programmable). It is ideally suited for microprocessor
systems requiring large data or program
storage and is organized as 65,536 words of 16
The FDIP40W (window ceramic frit-seal package)
has a transparent lid which allows the user to expose
the chip to ultraviolet light to erase the bit pattern.
A new pattern can then be written to the
device by following the programming procedure.
For application where the content is programmed
only one time and erasure is not required, the
M27C1024 is offered in PDIP40, PLCC44 and
5V 10% SUPPLY VOLTAGE in READ OPERATION
PROGRAMMING VOLTAGE: 12.75V 0.25V
