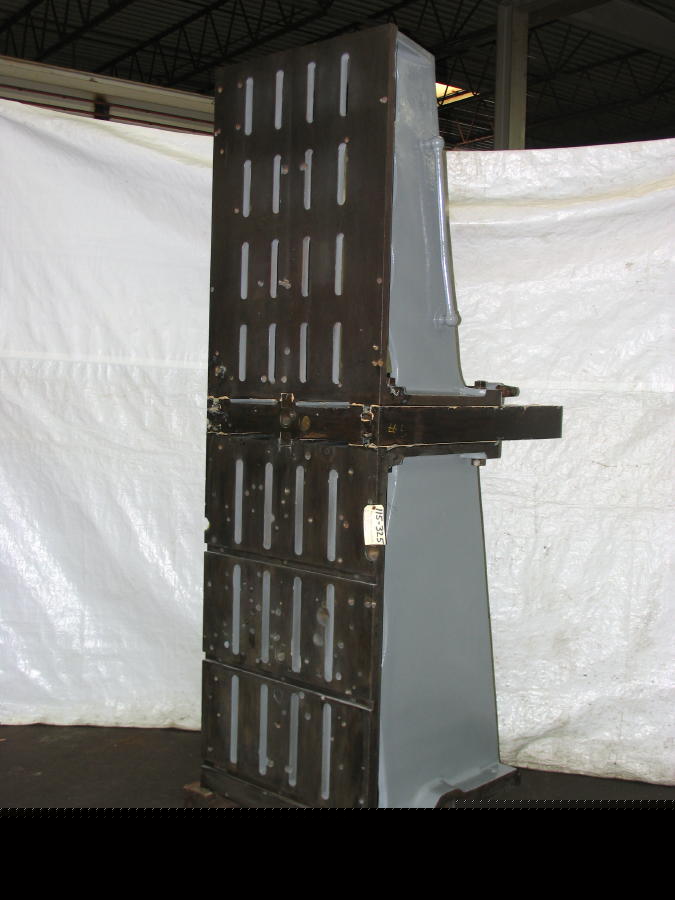

33" X 107" Angle/Knee Fixture Plate
33" x 107" Angle/Knee Fixture Plate
This Fixture plate has two seperate work mounting
areas where one can be mounted on top of the other
which will increase the height of the fixture from 53-1/2"
to a total of 107" tall. In addition to this stackable feature,
there is an adjusting plate between the two fixtures which
allows up to 24" of front to back movement of the top fixture
Work Mounting Face Size, Bottom Fixture: 33" x 53-1/2"
Work Mounting Face Size, Top Fixture: 33" x 47-1/2"
Thickness of Adjustable Plate: 5"
Depth of Base, Front to Back: 36"
Number of Mounting Slots, Bottom Fixture: 12
Size of Mounting Slots, Bottom Fixture: 1-3/8" x 12"
Number of Mounting Slots, Top Fixture: 16
Size of Mounting Slots, Top Fixture: 1-1/4" x 8"
