Dc power supply: car, boat, rv. optional din rail mount
Silicone Potted Against Vibration

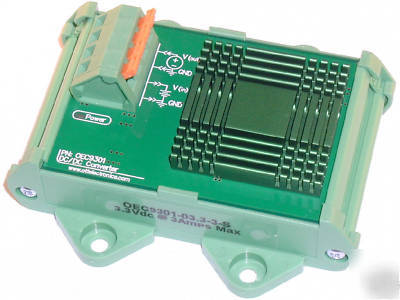

The OEC9301 is a general purpose DC/DC converter designed for 12vdc and 24vdc vehicle, marine and heavy equipment installations.
This power supply uses a step-down switchmode converter, which creates much less heat than comparable linear or resistive type regulators. The interior of the enclosure is "potted" with electronic grade silicone for moisture and vibration resistance.
Wiring is simple and a power LED on the output indicates when the power supply is functioning. The terminal blocks are a vibration resistant spring/clamp design. The clamp is opened by pressing the orange terminal block lever with a small screwdriver, and inserting your pre-stripped wire.
The power supply has automatic current limiting which prevents overload by lowering the output voltage when the current limit is exceeded.
The minimum input voltage is (Vout + 3v) or 8v, whichever is greater; the maximum input voltage is 32v. For full description and installation information, please refer to the Data Sheet below.http:// /downloads/Data_Sheet,OEC9301,Rev-.pdf
When ordering, please specify your desired output voltage, and whether you want a surface mount or DIN rail mount enclosure.
Quantity discounts are available. Rebranding for OEM's is also available in sufficient quantities, contact us for details.
* General purpose DC/DC converter designed for 12v and 24vdc applications.
* Vibration resistant interconnects.
* Rated to industrial temperature range of -40c to +85c (-40F to +185F).
* Standard output voltages: 3.3v, 5.0v, 9.0v, 12v, and 15v.
* Custom voltages available.
* Low ripple voltage of 50mV max, full load.
* Wide power supply input range of (Vout +3v) to 32Vdc.
* Automatic current limiting protects device from overload.
* Available in surface Mount or DIN Rail Mount enclosures.
* Factory Floor / Automation
