Medina "b" end grinder surface grinder, 10" x 15" perma

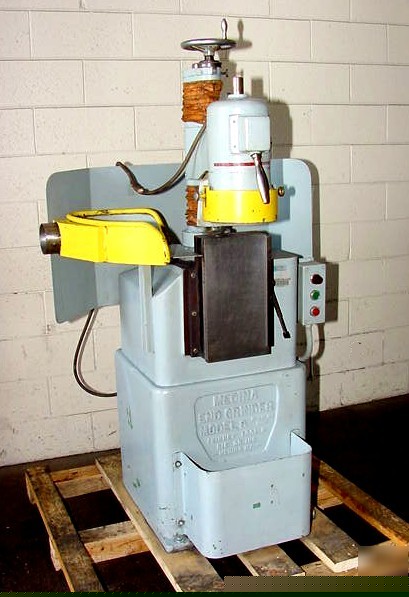

Medina "B" END GRINDER SURFACE GRINDER, 10" X 15" PERMA
Medina "B" END GRINDER SURFACE GRINDER, 10" X 15" PERMANENT MAGNETIC CHUCK
Grinding Capacity: 1" T x 20" W x 46" L
Length: 2" T x 17-1/2" W x 46" L
Length: 3" T x 14-1/2" W x 46" L
Length: 4" T x 10-1/2" W x 46" L
Grinding Wheel Size: 7" x 3" x 1-1/4" Bore
Approximate Overall Dimensions: 22" x 22" x 68"
Approximate Weight: 1,050 lbs.
- Machine is equipped with 10" x 15" Walker Fine-Division Permanent
Magnetic Chuck (New Cost Today for this Chuck is $2,510.00)
- Motor and Electrical Controls
- Mounted Diamond Wheel Dresser
A COMPACT PRECISION MACHINE FOR SQUARING ENDS UP TO
46" LONG, ANGLE GRINDING, SQUARING BLOCKS ON ALL SIDES,
GRINDING FERROUS & NON-FERROUS METALS & SURFACE GRINDING
